Description
ESP32-S2 is a truly secure, highly integrated, low-power, 2.4 GHz Wi-Fi Microcontroller SoC supporting Wi-Fi HT40 and having 43 GPIOs. Based on an Xtensa® single-core 32-bit LX7 processor, it can be clocked at up to 240 MHz.
With state-of-the-art power management and RF performance, IO capabilities and security features, ESP32-S2 is an ideal choice for a wide variety of IoT or connectivity-based applications, including smart home and wearables. With an integrated 240 MHz Xtensa® core, ESP32-S2 is sufficient for building the most demanding connected devices without requiring external MCUs.

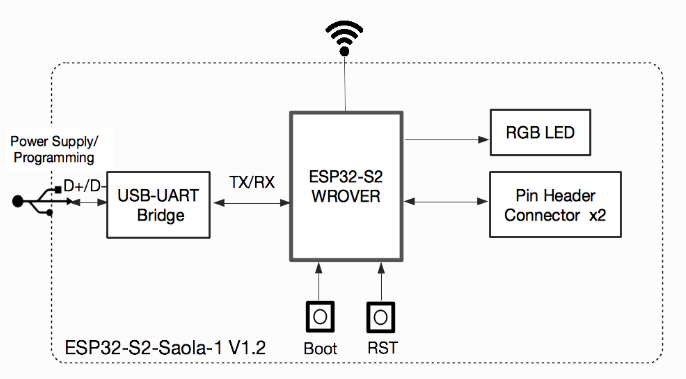

ESP32-S2-Saola-1 is a small-sized ESP32-S2 based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S2-Saola-1 on a breadboard.

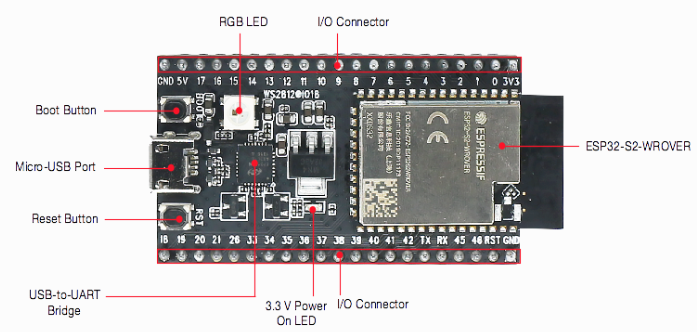

Key Components
ESP32-S2-WROVER
ESP32-S2-WROVER is a powerful, generic Wi-Fi MCU module that integrates ESP32-S2. It has a PCB antenna, a 4 MB external SPI flash and an additional 2 MB PSRAM.
I/O Connector
All available GPIO pins (except for the SPI bus for flash and PSRAM) are broken out to the pin headers on the board. Users can program ESP32-S2 chip to enable multiple functions such as SPI, I2S, UART, I2C, touch sensors, PWM etc.
USB to UART Bridge
Single USB-UART bridge chip provides transfer rates up to 3 Mbps.
Boot Button
Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port.
Reset Button
Reset button
3.3 V Power On LED
Turns on when the USB power is connected to the board.
Micro-USB Port
USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-S2 chip.
RGB LED
Addressable RGB LED (WS2812), driven by GPIO18.
Specifications
- Flash Size: 4MB
- PSRAM Size: @MB
- Antena Type: External IPEX antenna
- Operating Temperature: -40-85 Degrees Celcius
- Dimensions: 53.9x27.9
