SparkFun I2C DAC Breakout - MCP4725

The MCP4725 is an I²C controlled Digital-to-Analog converter (DAC). A DAC allows you to send analog signal, such as a sine wave, from a digital source, such as the I²C interface on the Arduino microcontroller. Digital to analog converters are great for sound generation, musical instruments, and many other creative projects!

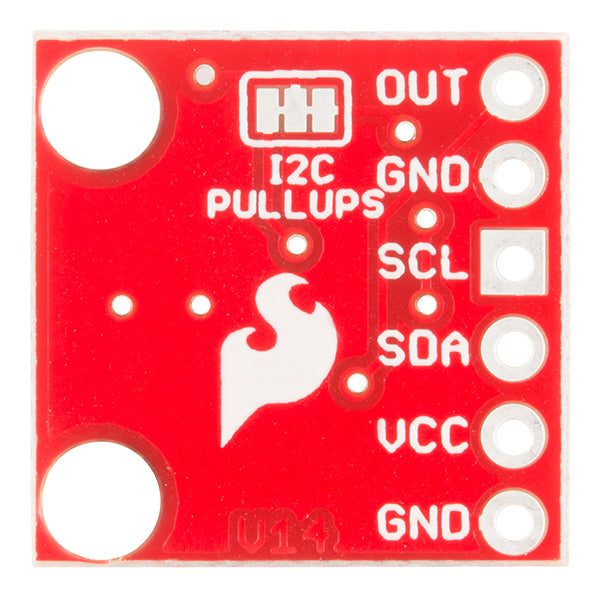

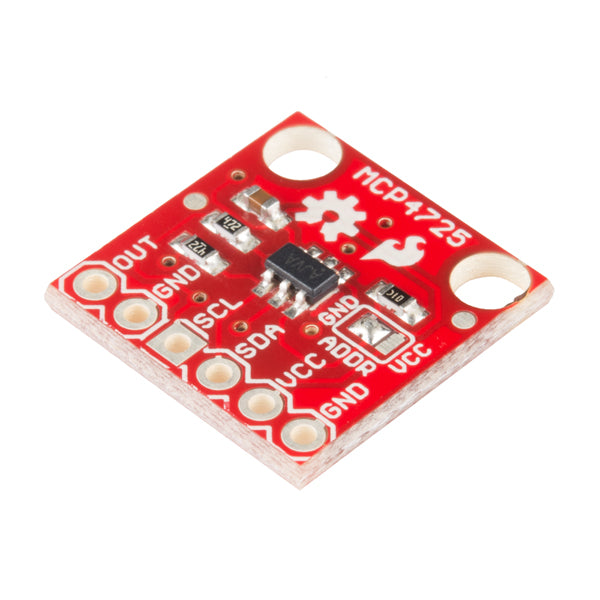

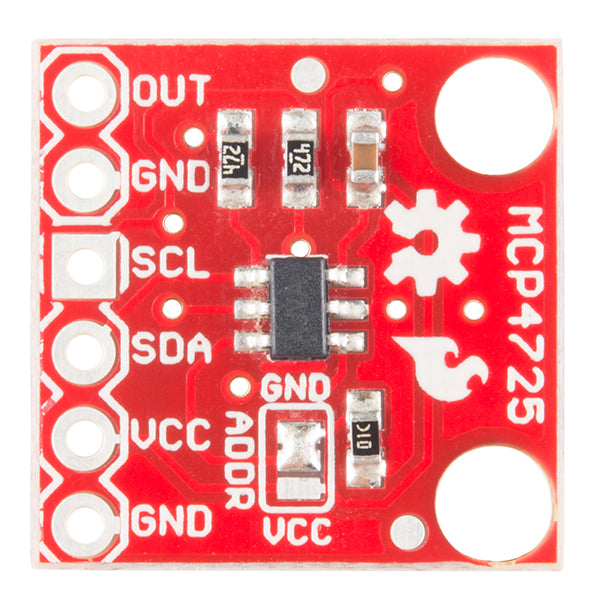

This board breaks out each pin you will need to access and use the MCP4725 including GND and Signal OUT pins for connecting to an oscilloscope or any other device you need to hook up to the board. Also on board are SCL, SDA, VCC, and another GND for your basic I²C pinout. Additionally, if you are looking to have more than one MCP4725 on a bus, the pull-up resistors on this board can be disabled just check the Hookup Guide in the Documents section below for instructions and tips on doing this.

See more on Sparkfun's Web Page

Specifications

• 12-bit resolution
• I²C Interface (Standard, Fast, and High-Speed supported)
• Small package
• 2.7V to 5.5V supply
• Internal EEPROM to store settings

Documents

• Schematic
• Eagle Files
• Hookup Guide
• Datasheet (MCP4725)
• GitHub (Design Files)
