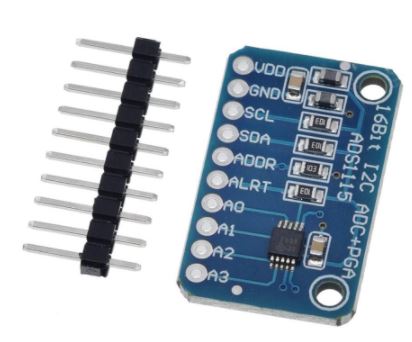

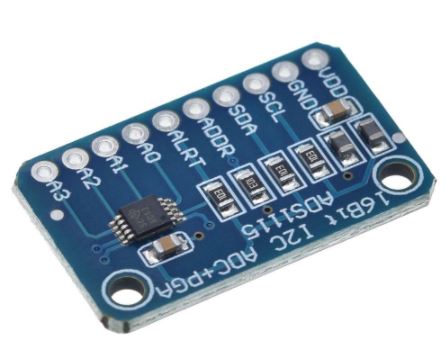

ADS1115 16 Bit Precision Analog-to-Digital Converter ADC Module Development Board
ADS1115 16 Bit Precision Analog-to-Digital Converter ADC Module Development Board
Roll over image to zoom in Click on image to zoom
ADS1115 16 Bit Precision Analog-to-Digital Converter ADC Module Development BoardADS1115 16 Bit Precision Analog-to-Digital Converter ADC Module Development Board

ADS1115 16 Bit Precision Analog-to-Digital Converter ADC Module Development Board

Lafvin
Price:
N$122.66

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

ADS1115 16 Bit Precision Analog-to-Digital Converter ADC Module Development Board

Specifications

  • ADC Bit rate: 16 Bit
  • Interface Type: I2C
  • Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs
  • Input voltage: 2.0-5.5v
  • Channel input voltage :0-VDD
  • Continuous Mode: Only 150μA
  • Single-Shot Mode: Auto Shut-Down
  • PROGRAMMABLE DATA RATE:8sps-860sps
  • Input range programmed control, 7 types input ranges:
    • -0.256V ~ + 0.256V,
    • -0.512V ~ + 0.512V,
    • -1.024V ~ + 1.024V,
    • -2.048V ~ + 2.048V,
    • -4.096V ~ + 4.096 V,
    • -6.144V ~ + 6.144V
  • I2C 7-bit addresses between 0x48-0x4B
  • Size:18mm*28mm
