Description

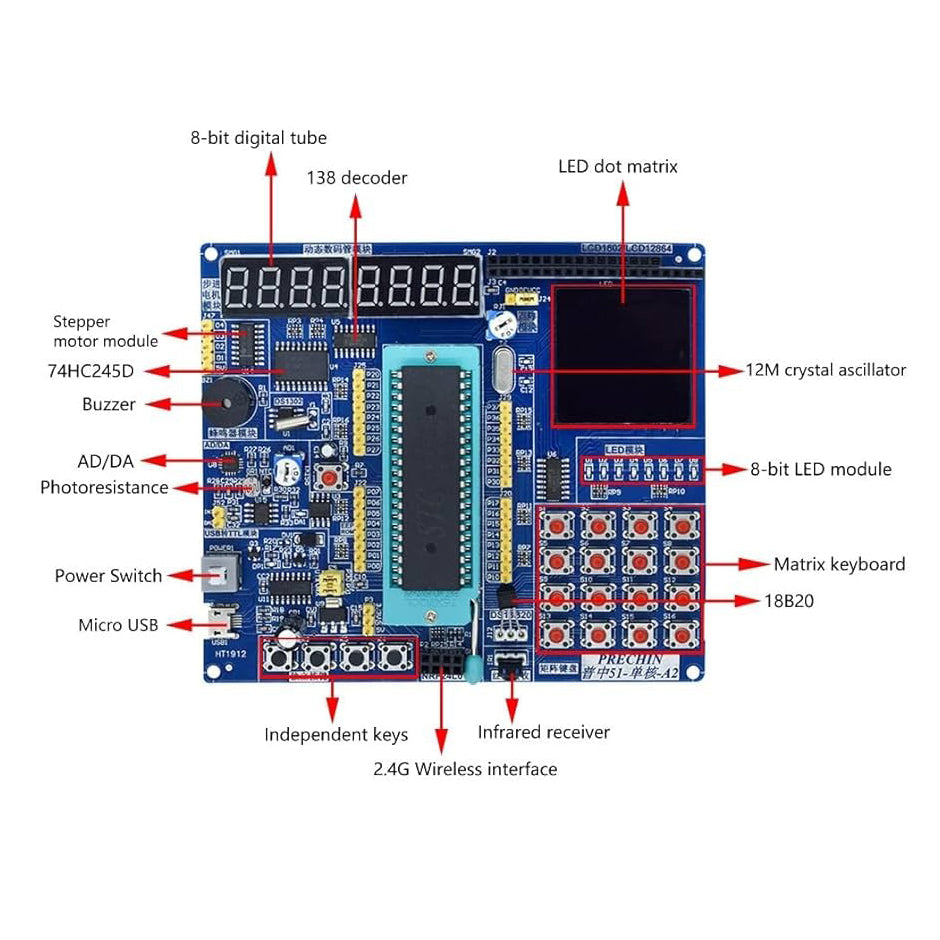

This development board is fully compatible with Windows 10 and XP (both 32-bit and 64-bit) and supports complete programming and serial communication via a USB connection. It comes with a wide range of accessories, including a blue backlit LCD1602 screen, a remote control, an integrated receiver, and more, allowing users to fully explore the expandability of the MINI51 board. Its compact design and excellent versatility make it well suited for C51-based DIY projects. The inclusion of host computer software allows users to control the development board directly from a PC through real-time, bidirectional communication. This feature makes the learning process highly interactive, as users can send commands and receive live data from the board using the smart host client.
Built with durability in mind, the board uses a 1.6 mm high-quality PCB, which offers better strength and resistance to deformation compared to standard 1.2 mm boards. It also comes with a 1.5-meter USB data cable featuring a thick copper core and shielding for stable data transfer. The board supports online learning with no complicated software downloads required, making it user-friendly for beginners. It features a blue-backlit 1602 LCD for clear visibility, high-brightness SMD LEDs in red, green, yellow, and blue, and a 4-digit common cathode 7-segment display for real-time numerical output.

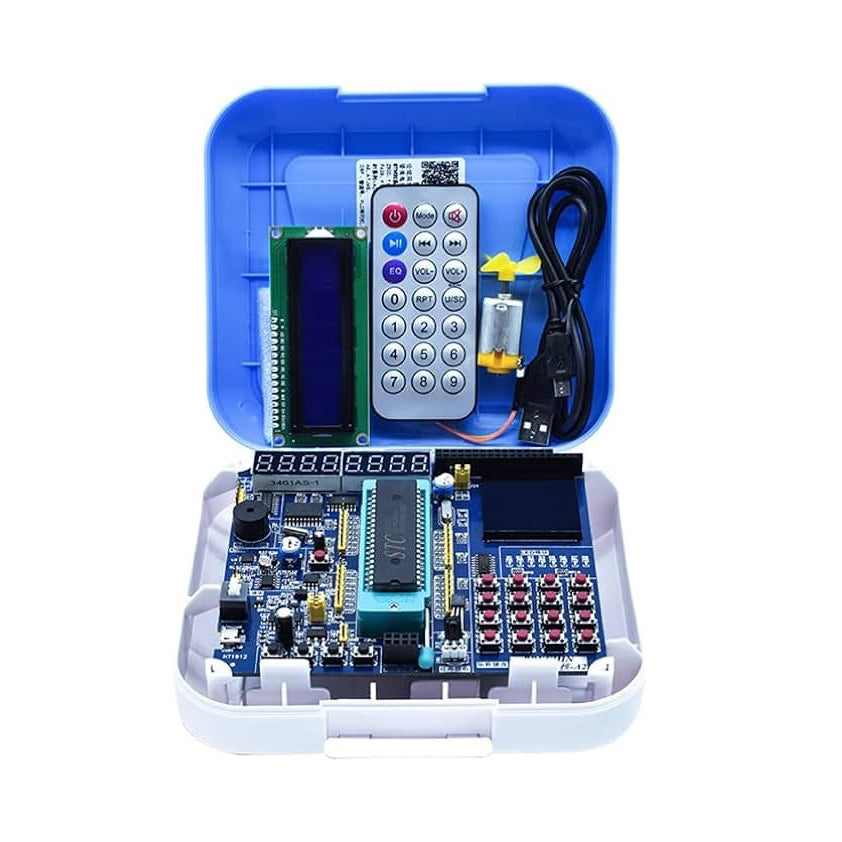

Included
C51 motherboard
Infrared receiving tube
DS18B20 temperature sensor
Screen with backlight 1602 LCD screen
MICROUSB data cable
Infrared remote control
DC motor
Packing box
Technical details
| Temperature stability | Within -25°C to 85°C |
| Upper temperature rating | 85 Degrees Celsius |
| UPC | 774827551075 |
| Part Number | 390414 |
| Package Dimensions | 15.5 x 14.7 x 5.3 cm; 290 g |
| Item model number | GY20798-1 |
| Material | PLA_(Polylactic_Acid), PC_(polycarbonate), PE_(polyethylene), SAN_(styrene_acrylonitrile_resin) |
| Power Source | Ac_Dc |
| Batteries Included? | No |
| Batteries Required? | No |
| Item Weight | 290 g |
NOTE: The kit does not come with a CD. One needs to scan the QR Code it comes with.
