Description

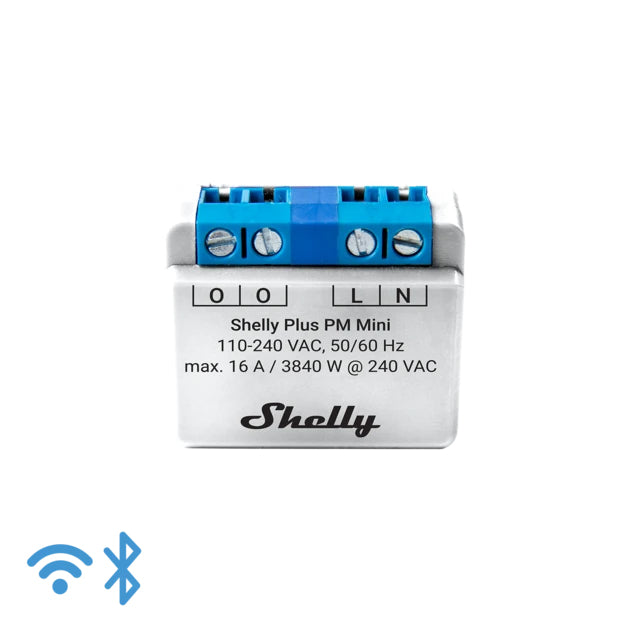

Wi-Fi-operated smart power meter, 1 channel 16 A
The smallest power meter in the world for precise power monitoring. Automate your lights or electrical appliances in less than 10 minutes and monitor their power consumption from anywhere. Small enough to fit behind any wall switch or socket, Shelly Plus PM Mini is retrofit and highly compatible with your existing smart ecosystem.
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation platform
- Supports up to 16 A at 240 VAC
- Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.
- Wi-Fi range extender & Bluetooth gateway
- Extremely fast processor for immediate reaction - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
*This is only a power meter. There is no relay inside.
Specification
PHYSICAL | ||
---|---|---|
Size (HxWxD): | 29x34x16 ±0.5 mm / 1.11x1.34x0.63 ±0.02 in | |
Weight: | 13 ±1 g / 0.46 ±0.04 oz | |
Mounting: | Wall box | |
Screw terminals max torque: | 0.4 Nm / 3.5 lbin | |
Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG | |
Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in | |
Shell material: | Plastic | |
Color: | White | |
ENVIRONMENTAL | ||
Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F | |
Humidity | 30 % to 70 % RH | |
Max. altitude | 2000 m / 6562 ft | |
ELECTRICAL | ||
Power supply: | 110 - 240 VAC | |
External protection: | 16 A, tripping characteristic B or C, | |
6 kA interrupting rating, | ||
Energy limiting class 3 | ||
Power consumption: | <1.2 W | |
OUTPUT CIRCUITS RATINGS | ||
Max measurement voltage: | 240 VAC | |
Max measurement current: | 16 A | |
Max measurement power: | 3840 W | |
Power measurement: | Yes | |
Voltage protection / Cutoff: | No | |
Current protection / Cutoff: | No | |
Max power protection / Cutoff: | No | |
RADIO | ||
RF band: | 2400 - 2495 MHz | |
Max. RF power: | <20 dBm | |
Wi-Fi protocol: | 802.11 b/g/n | |
Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors | |
(Depends on local conditions) | ||
Bluetooth Protocol: | 4,2 | |
Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors | |
(Depends on local conditions) | ||
MCU | ||
CPU: | ESP32 | |
Flash: | 4 MB | |
FIRMWARE CAPABILITIES | ||
Webhooks (URL actions): | 20 with 5 URLs per hook | |
MQTT: | Yes | |
UPD: | Yes | |
Scripting: | Yes |
