Description

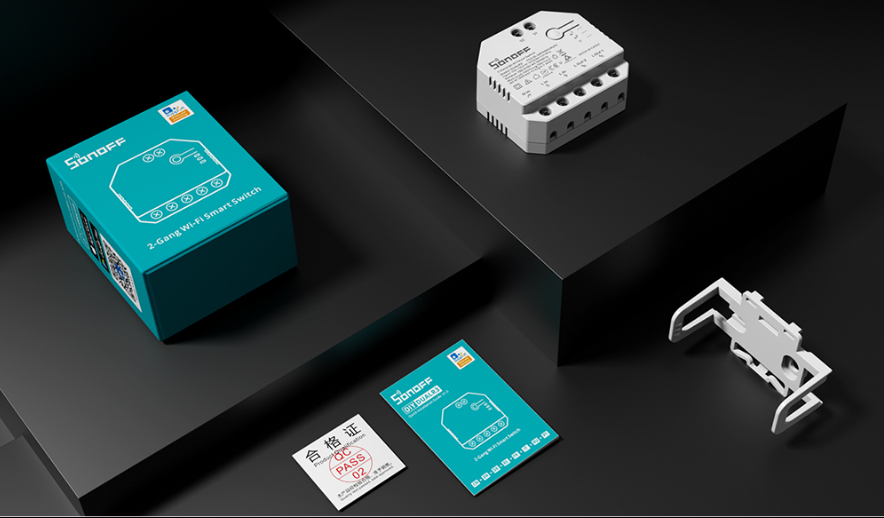

Want to be awakened with the first ray of sunlight in the morning or adjust the percentage of curtain opening to avoid the light ruining you furniture? DUALR3/DUALR3 Lite can help you easily realise it, just connect it with your motorised curtain to enjoy your smart life!

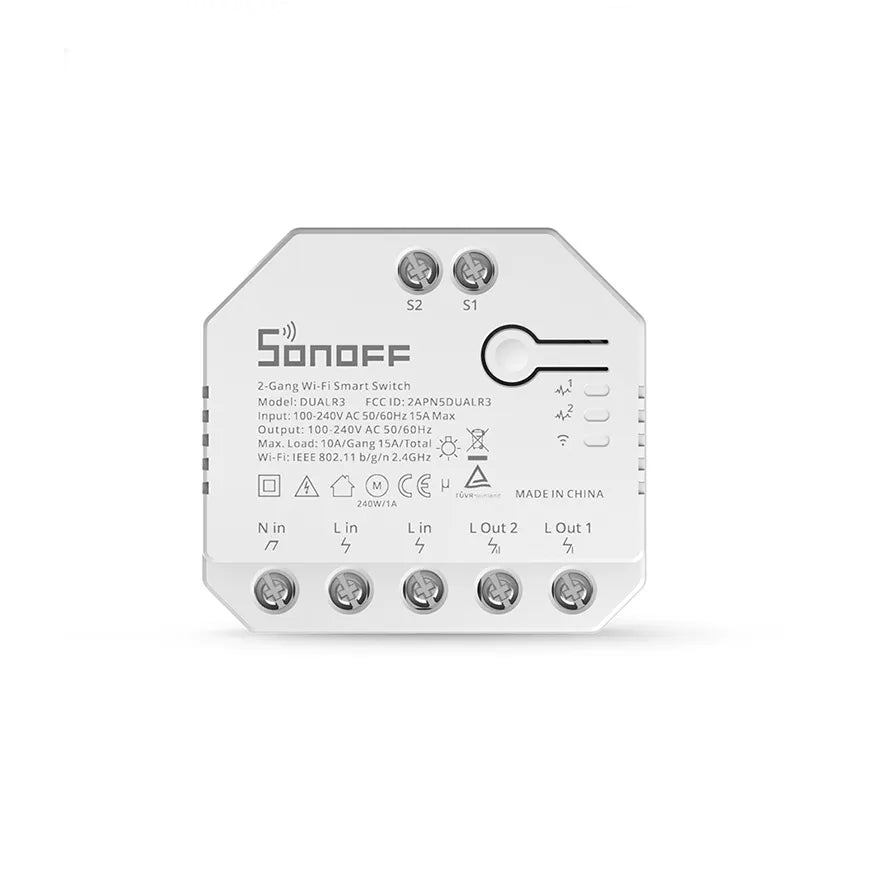

DUALR3/DUALR3 Lite can operate as a smart control module for a 100-240V AC motor, like the tubular motor for bi-directional motorized curtains, blinds, roller shutters, awnings, etc.
DUALR3/DUALR3 Lite is applicable to four wires (GND, neutral, Forward, and Reverse) AC motors, like tubular motors.
The motor connected to DUALR3 needs a travel limited function, otherwise, it cannot be calibrated.
DUALR3/DUALR3 Lite works with other SONOFF products like L2. Just tell Siri and it will automatically close the curtain for you to create a romantic atmosphere.
Note: Siri voice control is a shortcut of Siri in eWelink, DUALR3/DUALR3 Lite does not support Home kit temporarily.
DUALR3 has a special working mode called meter mode. In this mode, the electrical appliance loads of DUALR3 will always remain on, the relay state will not be changed by APP or external switches, Only focusing on power monitoring and metering!
Specifications
| Brand | |
|---|---|
| Product Type |
Dual Relay Two Way Power Metering Smart Switch |
| Power Supply |
Power Supply |
| Resistive Load |
3300W/15A/Total, 2200W/10A/Gang |
| Motor Load |
10-240W/1A |
| Max Power |
3300W(total) / 2200W(1 gang) |
| Product Dimensions |
54*49*24mm |
| Color |
White |
| Frequency |
802.11 b/g/n |
| Security Mechanism |
WPA-PSK/WPA2-PSK |
| Humidity |
5%-95%RH, Non-condensing |
| Enclosure Material |
Fire-retardant PC V0 |
| Operating Temperature |
-10ºC-40ºC |
| Switch Channel |
Dual |
| Certified Compliance |
TUV, CE, FCC |
| Works With | |
| Product |
DUALR3, DUALR3 Lite |
