Description
Ethernet
5 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
PERFORMANCE SPECIFICATIONS
- Bandwidth (Non-blocking): 1 Gbps
- MAC address table size: 2K entries
- Jumbo frame support: 2048 bytes
POWER
- Connector: 2-pin industrial DC power socket
- Input voltage range: 9 – 30 VDC
- PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
- Power consumption: Idle: 0.3 W / Max: 0.9 W
PHYSICAL INTERFACES

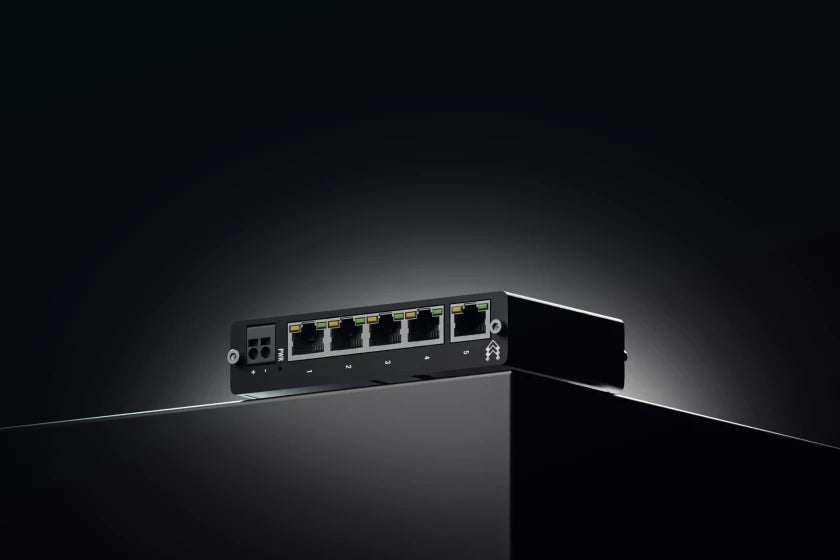

- Ethernet: 5x RJ45 ports, 10/100 Mbps
- Status LEDs: 1 x Power LED, 10 x LAN status LEDs
- Power: 1 x 2-pin industrial DC power socket
- Other: 1 x Grounding screw
PHYSICAL SPECIFICATION
- Casing material: Aluminum housing
- Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm
- Weight:146.5 g

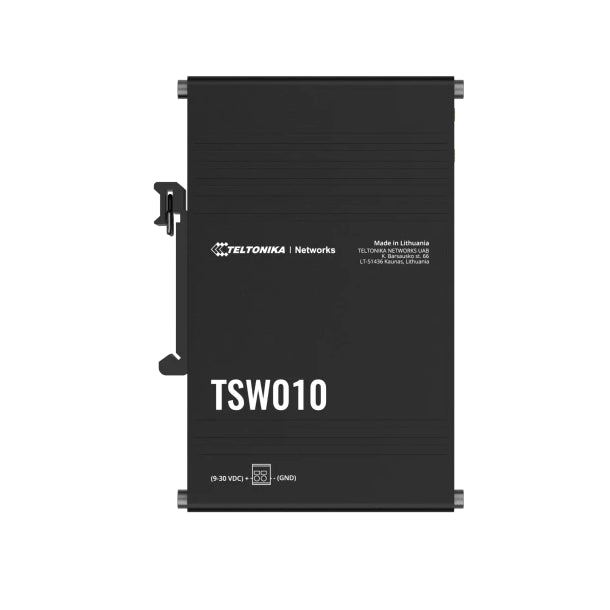

- Mounting options: DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
REGULATORY & TYPE APPROVALS
- Regulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
