Description

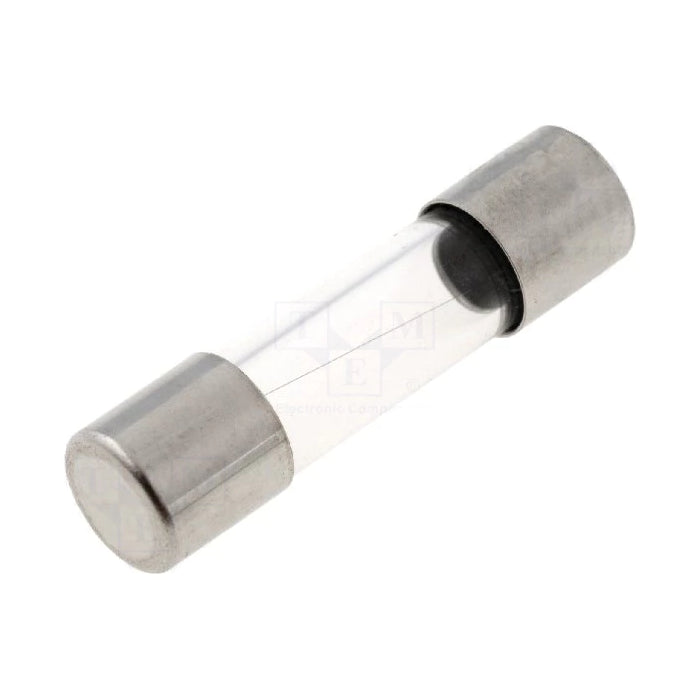

Fuse; time-lag; 100mA; 250VAC; cylindrical, glass; 5x20mm
Specifications
|
Manufacturer
|
ESKA | |
|
Type of fuse
|
fuse | |
|
Fuse characteristics
|
time-lag | |
|
Breaking capacity
|
35A | |
|
Current rating
|
0.1A | |
|
Rated voltage
For products in the Cables and Wires category, a digit/digit number indicates:
Rated volage U0/U where: U0 = cable nominal voltage between the conductor and the metal covering or earth U = cable nominal voltage between the phase conductors |
250V AC | |
|
Kind of fuse
|
cylindrical, glass, miniature | |
|
Fuse size
|
5x20mm | |
|
Breaking characteristics
|
2.75In: min 300ms, 2.75In: max 10s, 4In: min 40ms, 4In: max 3s, 10In: min 10ms, 10In: max 300ms | |
|
Max voltage drop
|
2.5V | |
|
Contact material
|
brass | |
|
Manufacturer series
|
522.500 | |
|
Power dissipation
|
1.6W | |
|
Kind of package
|
box | |
|
Contact plating
|
nickel plated |
