Description

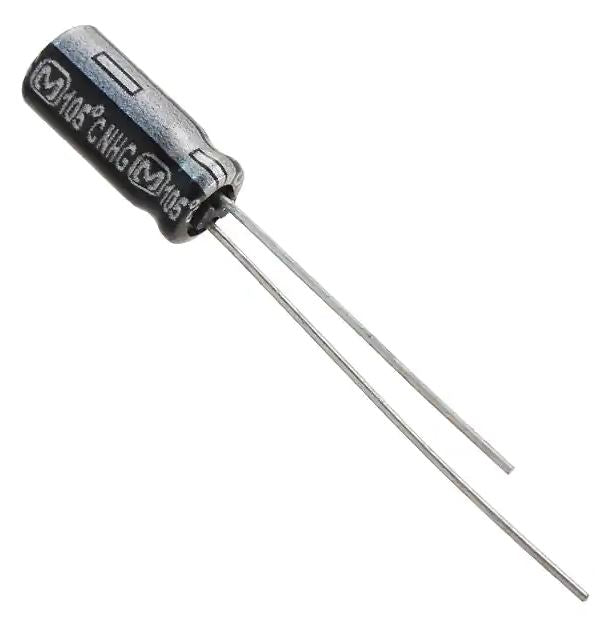

10 uF Capacitor 20% 50V Radial
Specifications
| Manufacturer | Panasonic Electronic Components |
|---|---|
| Series | NHG |
| Capacitance | 10µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ripple Current @ Low Frequency | 39mA @ 120Hz |
| Ripple Current @ High Frequency | 78mA @ 100kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
