Description
Interfacing a new microchip can be a hassle. Breadboarding a circuit, writing code, hauling out the programmer, or maybe even prototyping a PCB. We never seem to get it right on the first try.

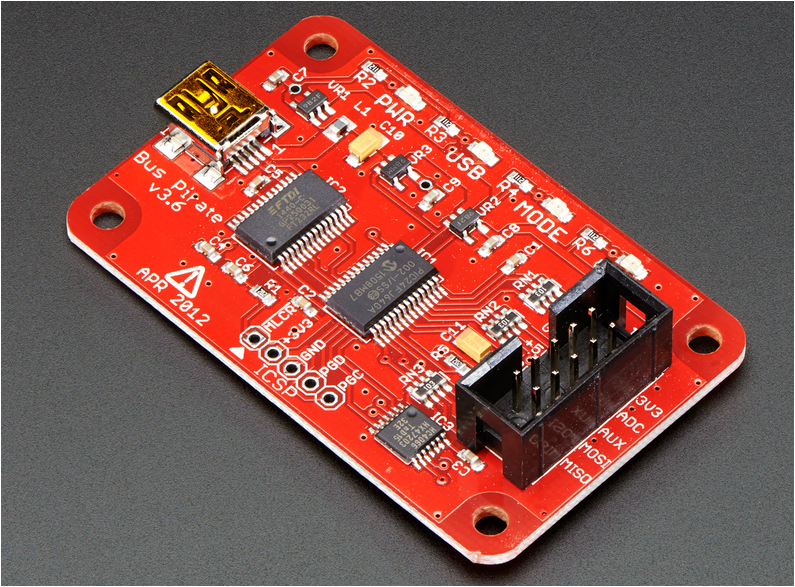

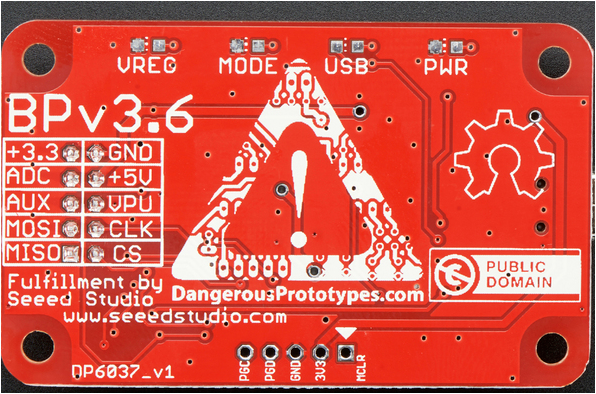

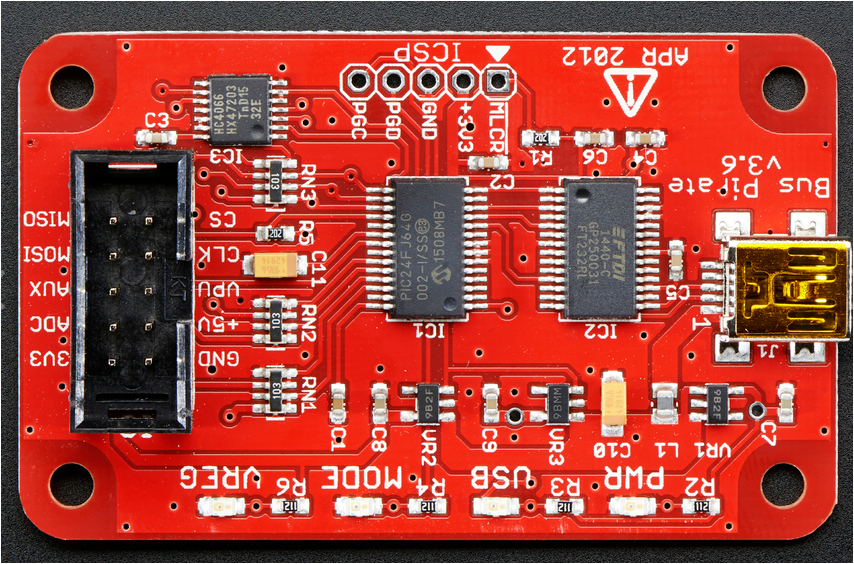

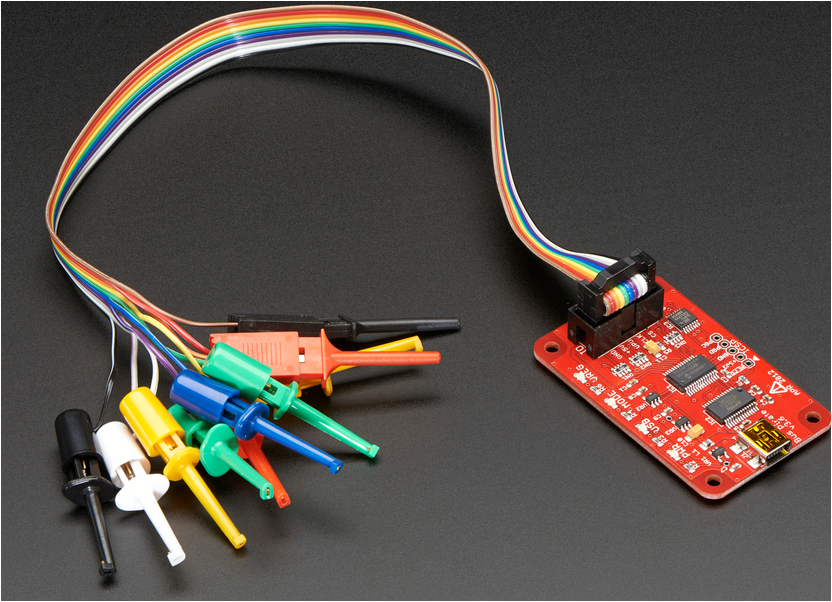

The 'Bus Pirate' is a universal bus interface that talks to most chips from a PC serial terminal, eliminating a ton of early prototyping effort when working with new or unknown chips. Many serial protocols are supported at 0-5.5volts, more can be added.
Adafruit is the official US distributor of Ian Lesnet's Bus Pirate and EcoRobotics is Adafruits distributor in Namibia.
Protocols: 1-Wire, I2C, SPI, JTAG, asynchronous serial (UART), MIDI, PC keyboard, HD44780 LCDs, and generic 2- and 3-wire libraries for custom protocols.
Features
- USB interface, USB powered
- 0-5.5volt tolerant pins
- 0-6volt measurement probe
- 1Hz-40MHz frequency measurement
- 1kHz - 4MHz pulse-width modulator, frequency generator
- On-board multi-voltage pull-up resistors
- On-board 3.3volt and 5volt power supplies with software reset
- Macros for common operations
- Bus traffic sniffers (SPI, I2C)
- A bootloader for easy USB firmware updates
- Transparent USB->serial bridge mode
- 10Hz-1MHz low-speed logic analyzer
- Custom support in AVRDUDE, Flashrom
- AVR STK500 v2 programmer clone
- Scriptable from Perl, Python, etc.
