Description

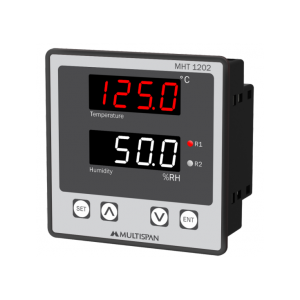

Temperature and humidity controller with 2x5A relays (1 for temperature and 1 for humidity).
Technical Specification
- Micro Controller Based, Double Display
- Upper display, 7 Segment, red 0.56" LED for process value sensor 1 (Temperature)
- Lower Display, 7 Segment, white 0.56" LED for process value sensor 2 (Humidity)
- Dimension: Size: 96(H)x96(W)x54(D) mm
- Panel Cutout: 92x92mm

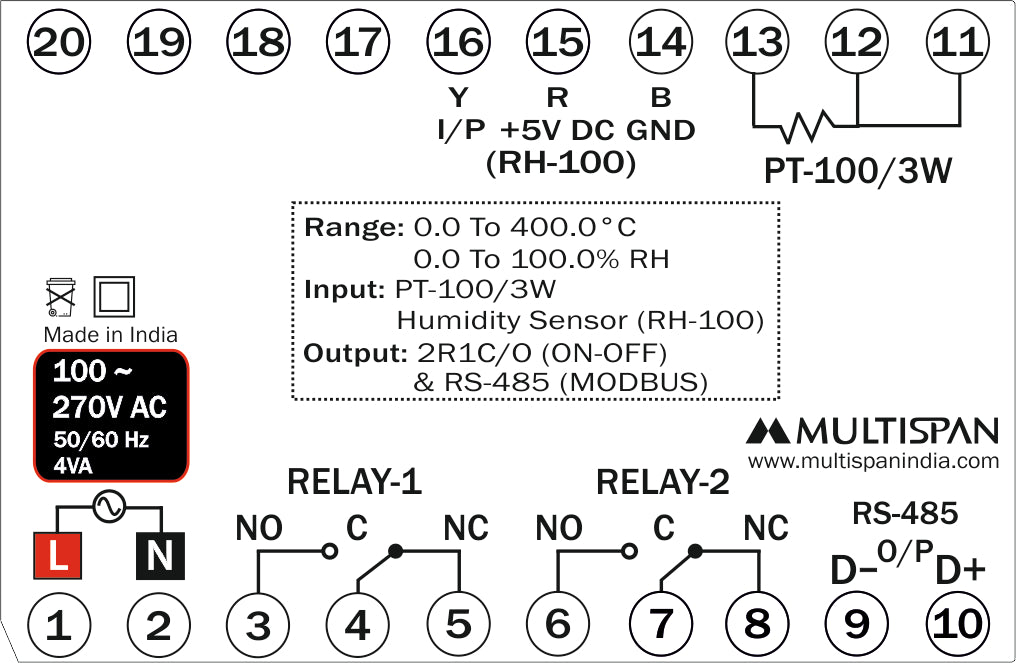

- Input: PT-100/3W and Humidity Sensor (RH-100)
- Range: PT-100 (0.0 to 400C)
- Humidity (0.0 to 100%)
- Supply: 100-270VAC, 50/60Hz, Approximately 4VA
- Output: 2 Relays 1C/O (On-Off)
- Protection Level: IP65 (Front Side) as per IS/IEC 60529:2001
