Description

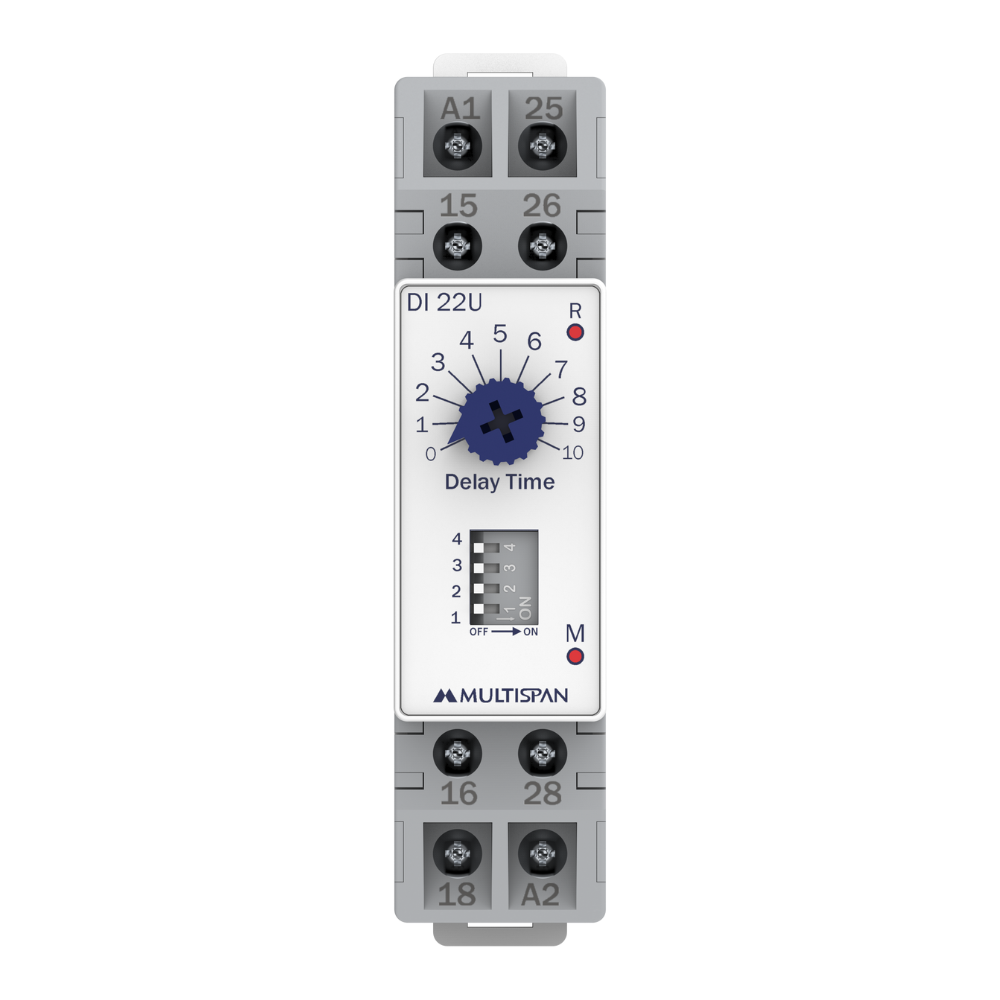

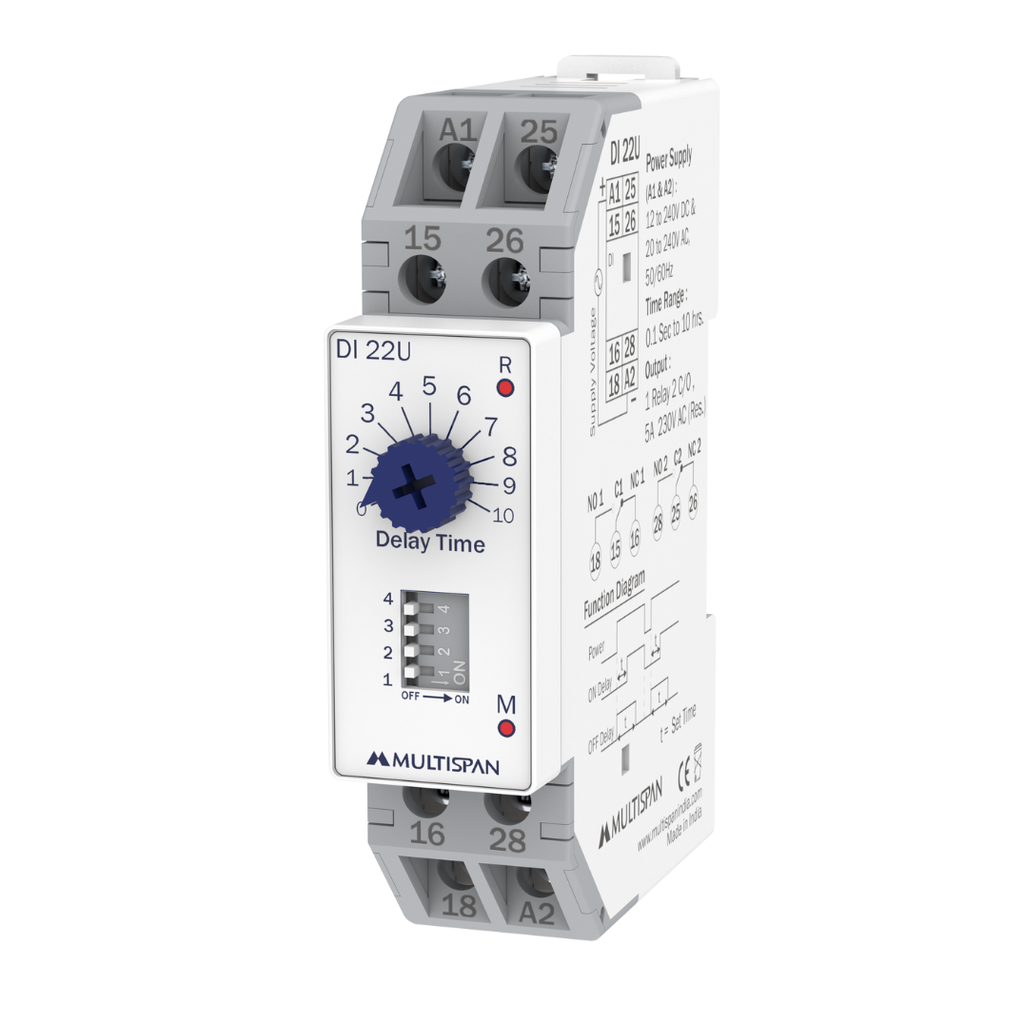

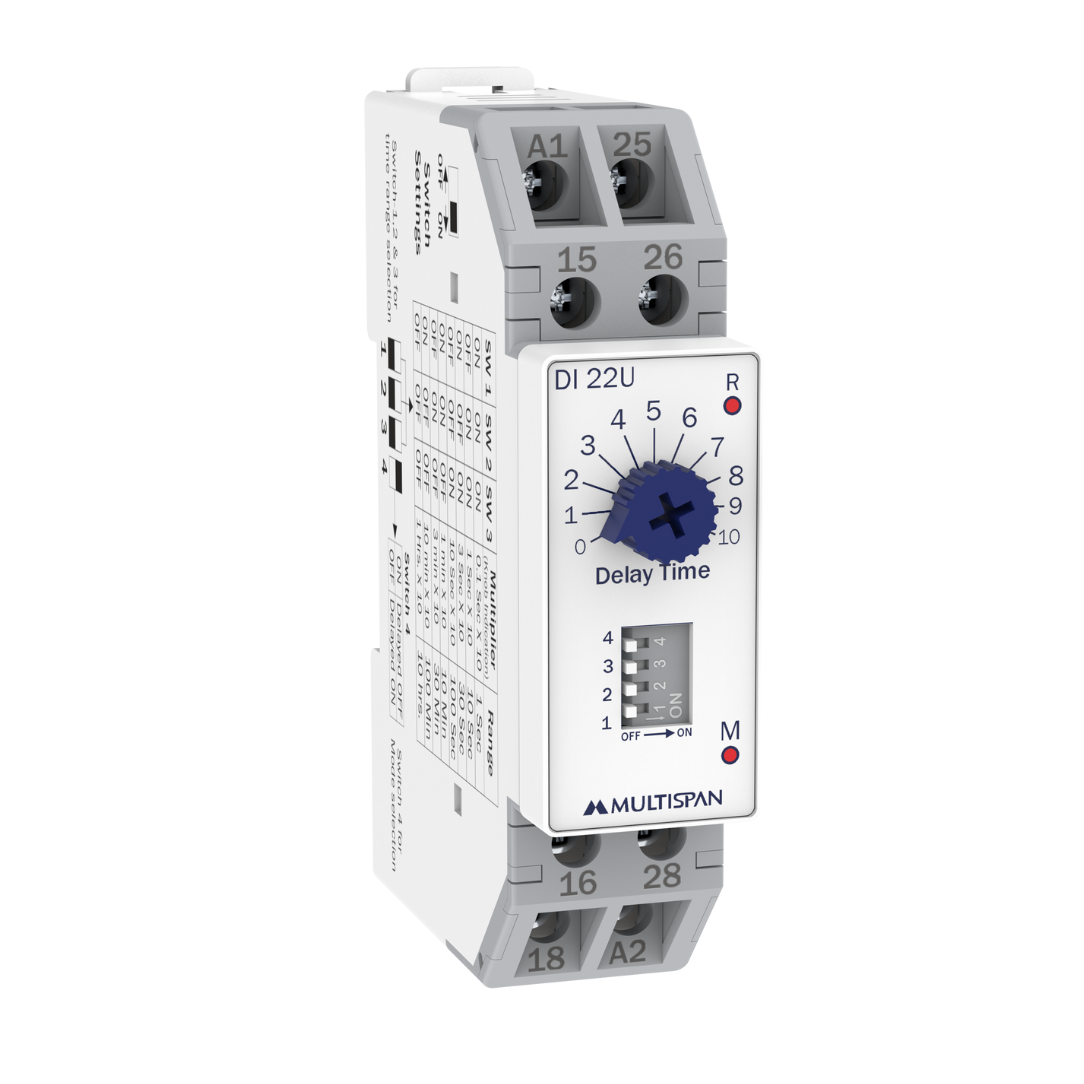

The MULTISPAN On- Off Delay timer- Universal Supply and Time Range DI-22U is a versatile on-off delay timer featuring a wide time range and universal supply compatibility. Designed for precise timing control in automation and industrial applications, it offers reliable performance, user-friendly settings, and DIN rail mounting. Ideal for process control, motor delay, and sequential operations.
Key Features:
- 0.1Sec to 10 Hour
- On/off delay selection
- 1 Relay 2 C/O, 5A,230V AC
- Size: (H)90mm x (W)22.5mm x (D)72mm
- Universal Aux Supply 12 to 240V DC, 20V TO 240V AC
Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 12V DC to 240V DC & 20 to 240V AC, 50/60 Hz |
| Output | 1 Relay O/P (2 C/O, 5A 230 VAC) |
| Time Range | 0.1 sec to 10 Sec/Min/hour |
