Description

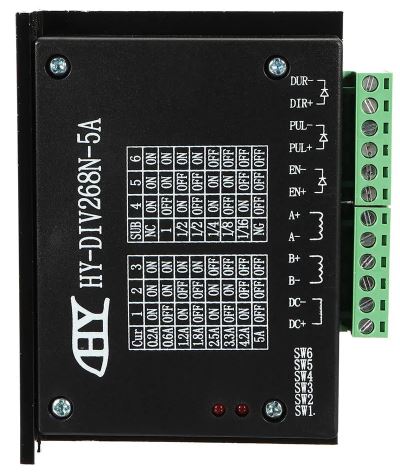

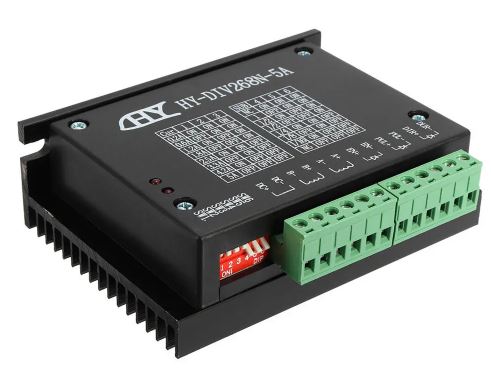

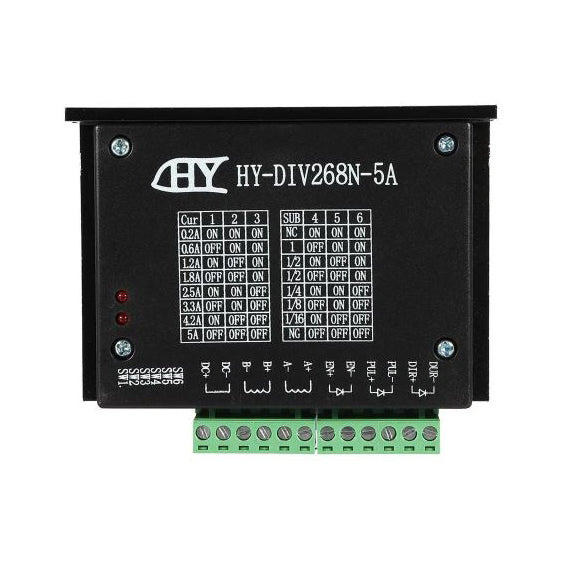

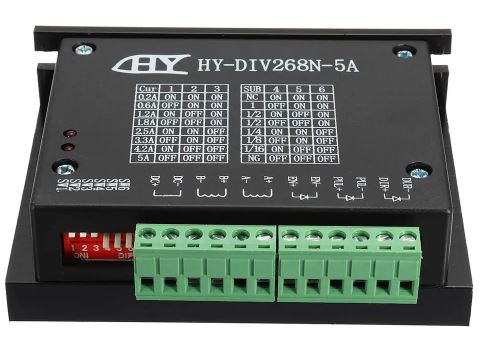

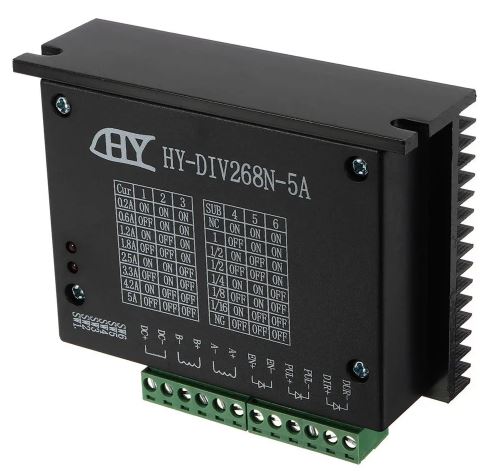

TB6600 0.2-5A CNC Engraving Machine Stepper Motor Driver Controller Single Axis
Specification
- Automatic idle-current reduction
- Supply voltage up to 50V DC
- Output current up to 5.0A
- High speed optoelectronic isolation signal input
- Single-chip PWM bipolar sinusoidal chopper ensures low vibration and high efficiency
- 1, 2, 4 (New Mode), 8, 16 adjustable micro step control, motors run more precisely and smoothly
Features
- Equipped with the 3rd generation of breakout board, display panel and control pad to control the motor manually.
- Overload, overcurrent, overheat, overvoltage and under voltage protection to avoid damaging your computer and devices.

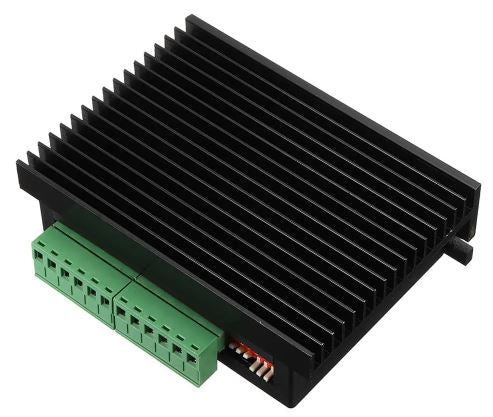

- Cooling Aluminum Box Design for Cooling, and protect the driver board from being damaged by dirt, dust or other liquids.
- Moreover, the brand new design with BiCD0.13 (50V) process technology on the chipset also ensures
- maximum 5.0A output current and 50V output withstand voltage.
