Description
Monitor the consumption of any home appliances, electric circuit and office equipment (lights, power lines, security systems, heating and cooling, etc.) individually. The consumption of your whole home or generated electricity from solar panels with the only one of its kind WiFi-operated Energy Meter with contactor control functionality in the world.

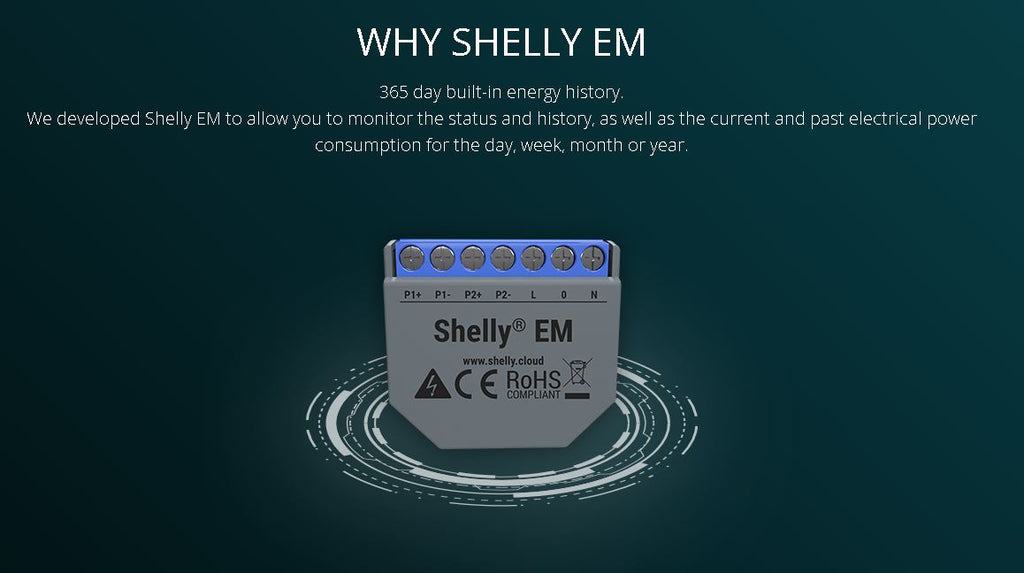

Shelly EM
- two independent measuring channels up to 120A each
- one contactor control (or load up to 2A)
- 365 days of internal memory in case Wi-Fi is not available
- voltage measurement and configurable alarm reporting
For more information please see Shelly Website
Specifications
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Power supply DC | No |
SPECIAL FUNCTIONS |
|
| Contactor Control | Yes - max 2A |
| Roller shutter mode | No |
| Device temperature protection | No |
| Overload protection | No |
| Power measurement | Yes |
FEATURES |
|
| Channels | 2 Channel |
| Operational temperature | -40 to + 40 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |

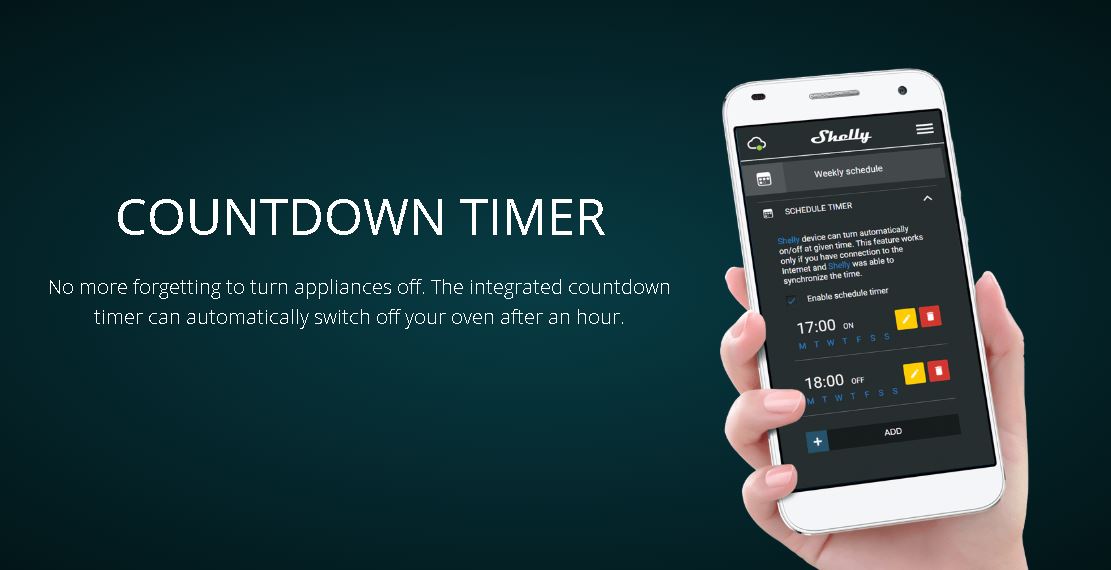

| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless/WiFi Protocol | 802.11 b/g/n |
| Radiofrequency | 2400 - 2484 MHz |
| Radio signal power | 1mW |
| Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
DIMENSIONS |
|

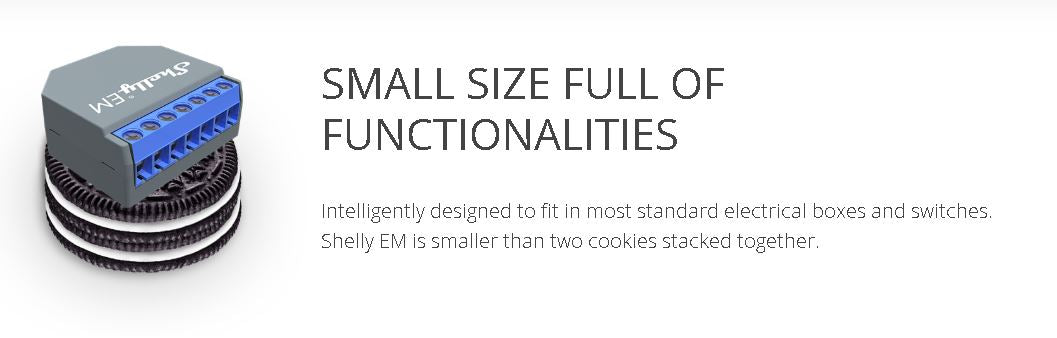

| Size | 39mm x 36mm x 17 mm |
