Description

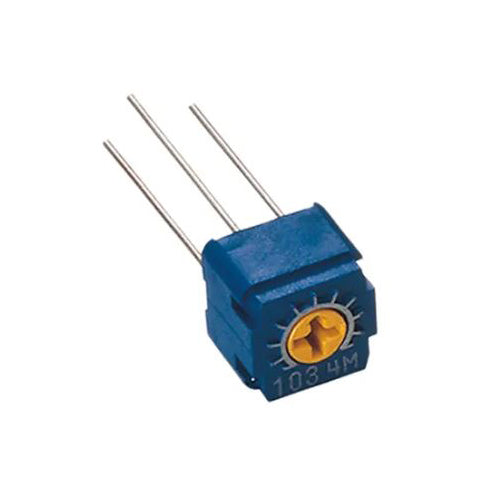

Professional range of Copal side adjustable cermet trimmers from the CT-6 series. The trimmers incorporate a silicon rubber ’O’ ring and a Copper, Tin-plated terminal pin.
Specifications
- Maximum Resistance: 10 kΩ
- Mounting Type: Through Hole
- Number of Turns: 1
- Orientation: Top Adjust
- Power Rating: 0.5W
- Series: CT6
- Termination Style: Solder Pin
- Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Maximum Voltage Rating: 70.7 V
- Length: 7mm
- Minimum Operating Temperature: -55°C
- Element Material: Cermet
- Mechanical Rotation: 260°
- Maximum Operating Temperature: +120°C
