Description

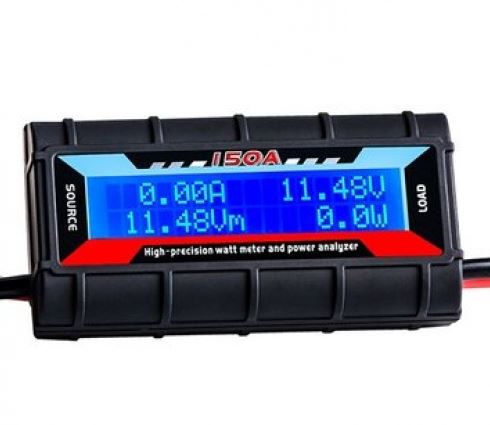

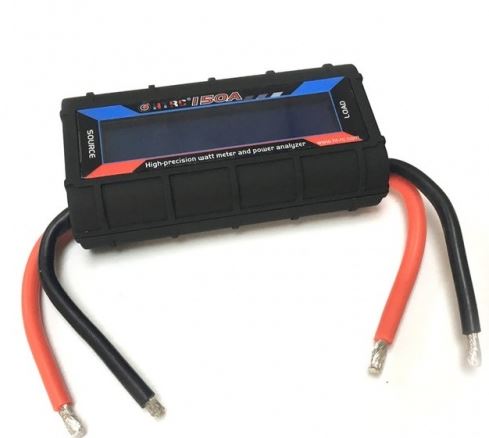

130A High Precision DC Watt Meter And Power Analyzer
Examples of where it can be used
How Much Power Does my Fridge Use- With the Battery connected to the SOURCE side and Car Fridge (or other accessory) connected to the LOAD side. The Watt Meter shows the current into the Fridge, voltage and power at the battery and accumulates the Ah and Wh while the fridge is running.
- With a battery charger (or alternator) connected to the SOURCE side and the aux battery connected to the LOAD side, the Watt Meter shows the charging current into the battery, the voltage and charging power at the battery and accumulates the charge (Ah) and energy (Wh) into the battery.
- With a solar panel connected to the SOURCE side and solar regulator connected to the LOAD side, the Watt Meter shows the charging current into the regulator, the voltage and charging power at the solar panel and accumulates the charge (Ah) and energy (Wh) into the regulator.
- Now with a solar regulator connected to the SOURCE side and battery connected to the LOAD side, the Watt Meter shows the charging current into the battery, the voltage and charging power at the regulator and accumulates the charge (Ah) and energy (Wh) into the battery.
Specifications
-
Item NO :FT08
-
Operation Voltage: 4.8V-60V
-
Measures Range
-
0-130A, resolution 0.01A;
-
0-60V, resolution 0.01v;
-
0-6554W, resolution 0.1w;
-
0-65Ah,resolution 0.001An;
-
0-6441Wh,resolution 0.1Wh;
-
LCD: 16 x 2, backlit LCD display
-
Size: 85 mm x 43 mm x 25 mm
-
Weight: 82g
-
Color: Black
