Description

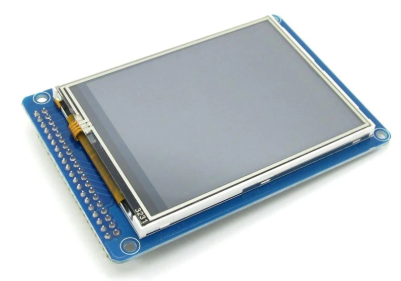

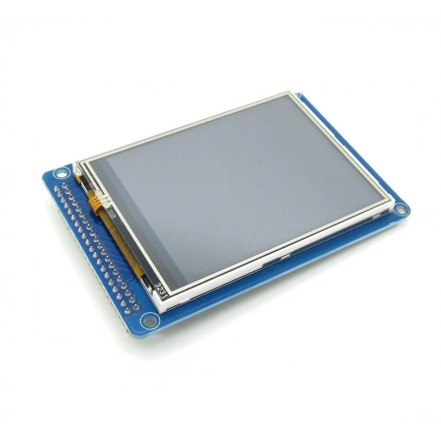

3.2" inch TFT LCD Screen Module
Specifications
- 3.2 inch, 240*320 resolution, TFT touch screen;
- Display driver IC SSD1289/ILI9341, touch screen driver for XPT2046;
- 16bit-display interface parallel interface, support for 6800 and 8080 bus interface supports STM32 FSMC bus interface, crowding the screen faster;
- High current LDO voltage regulator, 5V and 3.3V power supply;
- Onboard PWM backlight control circuit to support IO control and PWM dimming control;

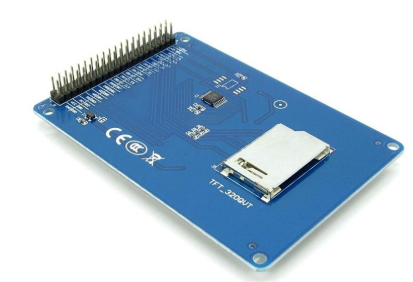

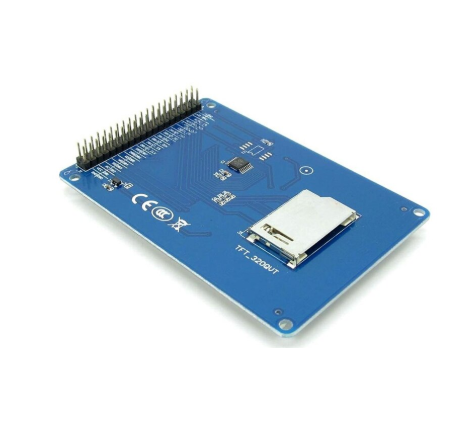

- Modules with SD cards, digital photo frames and other experiments can be done;
- Supports landscape and portrait displays, support split the screen display;
- Support for 262,000-color RGB display and displayed good quality;
- Graphic display of the screen controller has internal 172800 byte data storage;
- 40Pin
