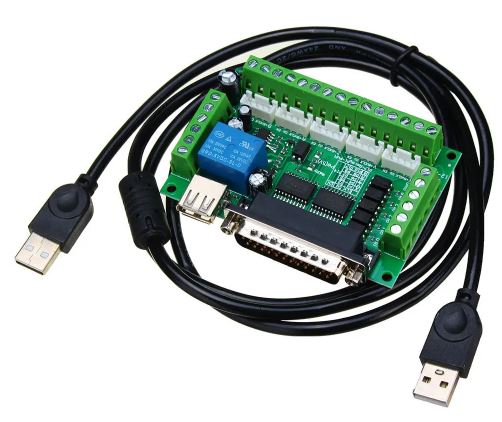

Description
Fully support of MACH3 and other computer software support for parallel port control.
USB power supply and peripherals powered phase separation to protect computer security.
Peripheral wide voltage input,12-24V, and anti-reverse function.
All of the input signal, all the light isolated, which can be accessed emergency stop, the limit to protect computer security.
Specifications
- All the way to the relay output port, control spindle switch. Output port P17 mouth.
- All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
- Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
- P1 as PWM outputs can be controlled with optocoupler input spindle governor.
- Can be accessed by a common cathode or common anode input level to 5V drive
