Description

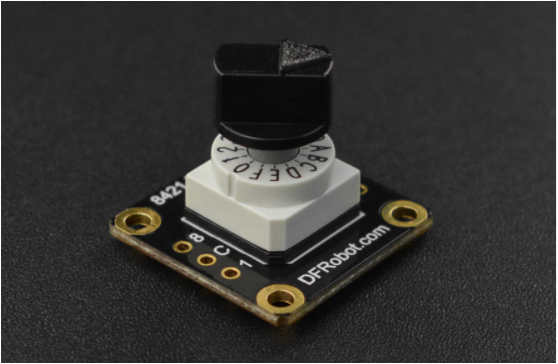

This is an 8421 absolute position encoder with 16-gear code(0-F). The mechanical position determines the uniqueness of each position of the encoder. Compared to a potentiometer, it doesn’t require memory, reference point and constant counting. Whenever you need the position, you can just easily read it. In this case, the anti-interference of the encoder and the reliability of the data are greatly improved. And because of the absolute uniqueness of each position, the anti-interference ability, and no power-off memory function required, this product is widely used in many kinds of industrial systems for device status controlling.
Specifications
- Operating Current: 150mA, 42V
- 8421 Encode: 16-gear(0-F)
- Service Life: 10000 steps
- Operating Temperature: -40~85℃

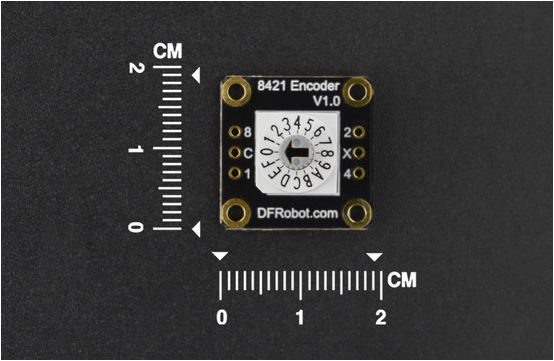

- Dimension: 19x19mm/0.75x0.75”
- Mounting Aperture: 2.0mm
- Mounting Hole Pitch: 15x15mm
