Description

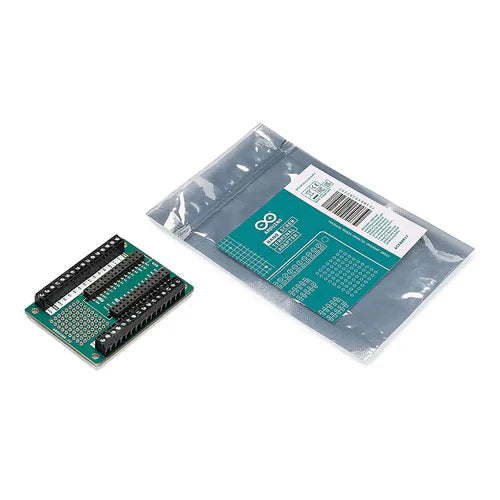

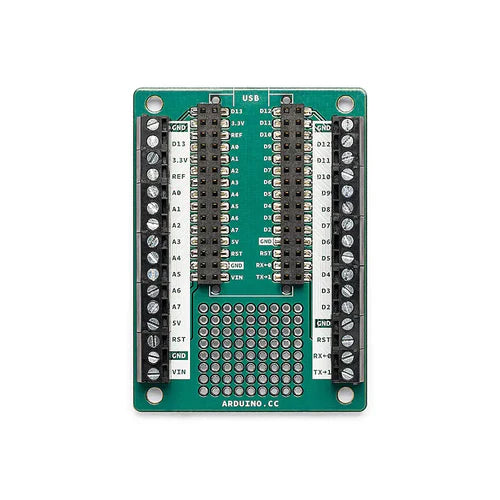

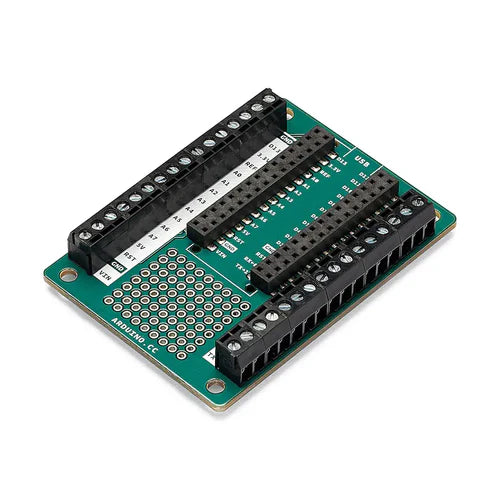

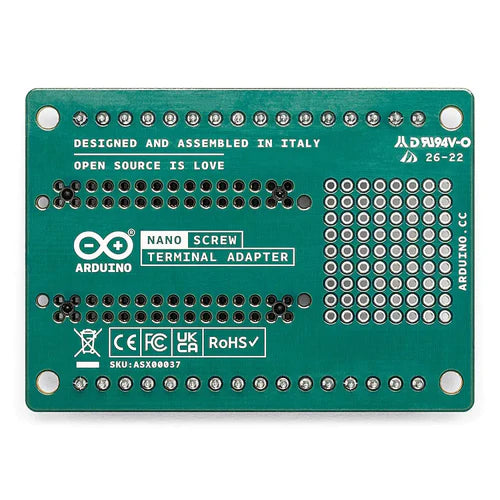

The ARDUINO® Nano Screw Terminal Adapter provides a convenient and secure way to connect wires to your Arduino Nano. Featuring screw terminals for each pin, this adapter simplifies prototyping, circuit building, and testing without the need for soldering. Perfect for hobbyists, makers, and engineers, it ensures reliable connections and easy modifications for your projects.
Specifications
| Carrier | ||
|---|---|---|
| Name | Arduino® Nano Screw Terminal Adapter | |
| SKU | ASX00037 | |
| Connectors | ||
| Screw terminals | 32 screw terminal connections (3.5 mm pitch, 16 ˜ 30 AWG) | |
| Connector sockets | 2 double row sockets with 15 contacts each (2.54 pitch) | |
| Prototyping Area | ||
| 9x8 grid (2.54 mm pitch) | ||
| Dimensions | ||
| Width | 50.5 mm | |
| Length | 70 mm | |
| Weight | 29 grams | |
