Description

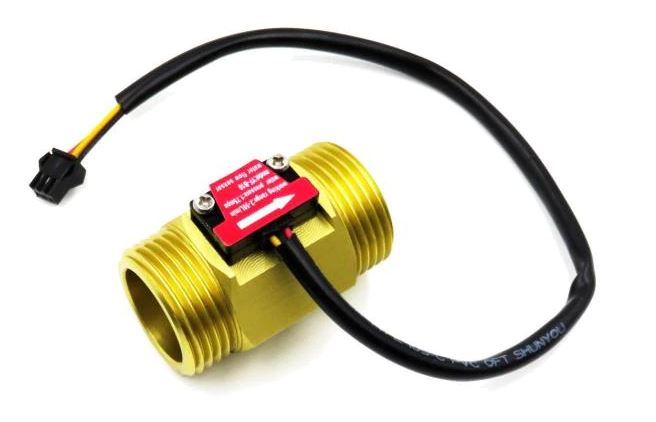

The YF-B10 Brass Water Flow Sensor is a high-capacity, durable sensor designed for accurate measurement of water flow rates in systems with G1" threaded pipe fittings. Built with a rugged brass body, it provides excellent resistance to pressure, corrosion, and high temperatures, making it ideal for industrial, agricultural, and smart home water monitoring applications.
As water flows through the sensor, a built-in rotor generates pulses that are directly proportional to the flow rate, which can be read and processed by microcontrollers such as Arduino, ESP32, or Raspberry Pi.
Features
- The water flow sensor is mainly composed of a brass valve body, a water flow rotor assembly and a Hall sensor.
- The magnetic rotor rotates and the rotation speed changes with the flow rate, and the Hall sensor outputs corresponding pulses
Specifications
- The rated voltage: 5Vdc
- Maximum operating current: 15 mA (DC 5V)
- Working voltage range: DC 5~15 v
- Load capacity: ≤ 10 mA (DC 5V)
- Allowing pressure: pressure 1.75Mpa
- Temperature: -25~+60 °C
- External threads: 1"
- Flow Rate: 2-50l/min
- Flow Pulse: (6*Q-8)=l/min +/- 5%
- Diameter - 32mm
