Description

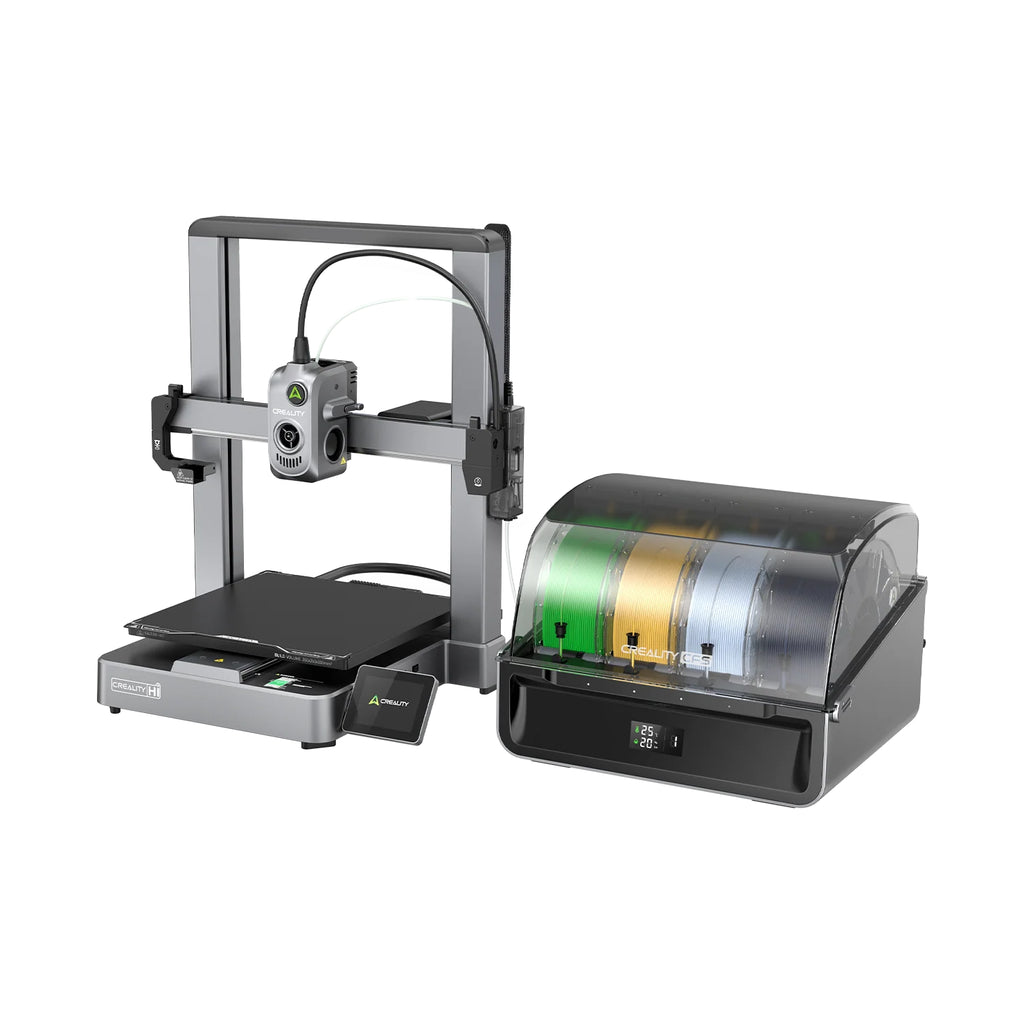

The Creality Hi Combo 3D Printer is a powerful, multi-color FDM printer designed for precision, speed, and seamless filament management. Featuring FOC step-servo motors, active input shaping, and dual lead screws, it delivers smooth, high-speed printing with automatic filament detection and multi-filament compatibility (up to 16 colors with CFS). The integrated RFID sensor, full-auto leveling, and built-in monitoring camera make it a perfect choice for both professionals and enthusiasts.
A Refined & Integrated Multicolor Solution
The Creality Hi Combo 3D Printer is compatible with RFID filaments, multi-color slicing, and multi-filament management.
Built-in Sensor to Read Filament Info
Just scan a Creality RFID filament spool on the right side of the printer base, and the built-in sensor will automatically identify its color and type. It will remind you when there is a conflict between the slicing info and the actual filament loaded.
High-sensitivity Sensor
A strain gauge in the toolhead auto-probes the bed for an accurate leveling mesh.
Dual Lead Screws
The Creality Hi Combo 3D Printer uses two independently motorized lead screws, allowing for adjusting the X-axis to the horizontal position.
Smooth Filament In/Out by Touch Control
Filament loading & unloading now is even easier with the CFS in play. Simply insert the filament into the feeding tube, and then give a few quick touches.
Distinct Sounds to Keep You Informed
The built-in buzzer will give off corresponding sounds when the print task is finished or paused unexpectedly. No need for your constant attention.
Fold-away 3.2″ Touch Screen
No assembly is required. It is responsive to your fingertip, and you can easily fold it away for a smaller footprint. The cable connection is also more solid.
Camera with a Privacy Cap
Video monitoring of your print jobs / One tap to share time-lapse video. The Creality Hi Combo 3D Printer has a Camera cap for privacy protection.
Active Input Shaping
The Creality Hi Combo 3D Printer uses a proprietary algorithm that can analyze the amplitude of vibrations at different print speeds and generate opposite signals to cancel out the vibrations actively. So, you will get faster prints, less ringing, and smoother surfaces.
Boosted by FOC Step-servo Motors
The X and Y axes of the Creality Hi Combo 3D Printer are driven by step-servo motors with FOC algorithms. It enables quiet and smooth motion even at a mind-blowing print speed.
Specifications
| Printing Technology | Fused Deposition Modeling |
| XYZE Motor | Step-servo motor for X/Y axis; stepper motor for others |
| Build Volume | 260 × 260 × 300 mm |
| 3D Printer Dimensions | 409 × 392 × 477 mm |
| Printer Package Dimensions | 650 × 460 × 240 mm |
| Combo Package Dimensions | 650 × 460 × 560 mm |
| File Transfer | USB drive/WiFi |
| Display Screen | 3.2″ colour touchscreen |
| Monitoring Camera | Yes |
| Auto Filament Relay | Yes (with CFS) |
| Filament Run-out Sensor | Yes |
| Filament Tangle Detection | Yes |
| Input Shaping (G-Sensor) | Yes |
| Lighting Kit | Yes |
| Printing Speed | 300 mm/s typical speed; 500 mm/s max speed |
| Rated Voltage | AC 100~240V / 50 Hz |
| Acceleration | ≤ 12000 mm/s² |
| Rated Power | 1150W@220V; 390W@110V |
| Printing Accuracy | 100±0.1 mm |
| Supported Filaments | Hyper-PLA/PLA/PETG/ABS/PLA-CF |
| Layer Height | 0.1-0.35 mm |
| Slicing Software | Creality Print 5.1 and newer versions |
| Extruder | Direct drive extruder |
| Max Number of Filaments | 1 (without CFS); 16 (with four CFS) |
| Filament Diameter | 1.75 mm |
| Nozzle Type | Durable tri-metal nozzle |
| RFID Filament | Optional |
| Nozzle Diameter | 0.4 mm, compatible with 0.6/0.8 mm |
| Support File Formats | G-code/3MF |
| Nozzle Temperature | ≤ 300 ℃ |
| CFS | Yes |
| Heatbed Temperature | ≤ 100 ℃ |
| CFS Connection | ≤ 4 (Separate power source required for 2 or more units) |
| Build Plate | Two-sided epoxy flexible build plate |
| APP for Cloud Printing | Creality Cloud |
| Leveling Mode | Full-auto leveling |
| File Storage | 8G EMMC |
