Description

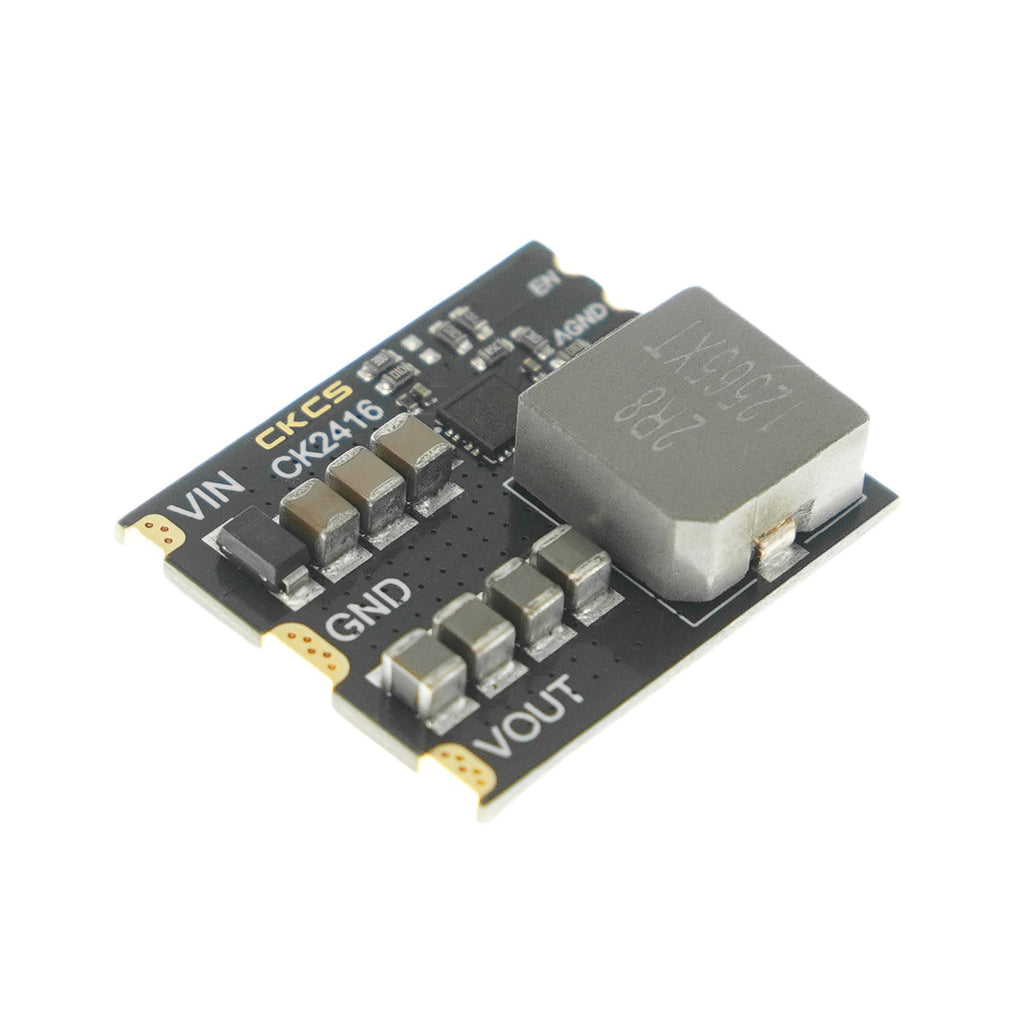

The DFROBOT DC-DC Step Down Buck Converter is a high-efficiency power module designed for stable and reliable voltage conversion. Supporting a wide input range of 6V to 24V, it delivers a regulated 5V output at up to 16A, making it suitable for demanding applications that require consistent performance.
Engineered with advanced protection features, it includes over-temperature protection (up to 125°C), output short-circuit protection and ensures ultra-low output ripple noise (<20mV). With a conversion efficiency of over 90% under typical conditions (12V input, 1–16A load), this module guarantees minimal power loss while maintaining stable operation.
Specifications
- Input Voltage: DC 6~24V
- Output Voltage: DC 5V ±1%
- Max Output Current: 16A
- Output Ripple Noise: ＜20mV (1~16A load)
- Conversion Efficiency: ＞90% (input 12V, load 1~16A)
- Static Current (EN floating): ＜2mA
- Static Current (EN grounded): ＜3µA
- Operating Temperature: -25℃ ~ +70℃
- Output Short Circuit Protection: Yes
- Over-Temperature Protection: 125°C

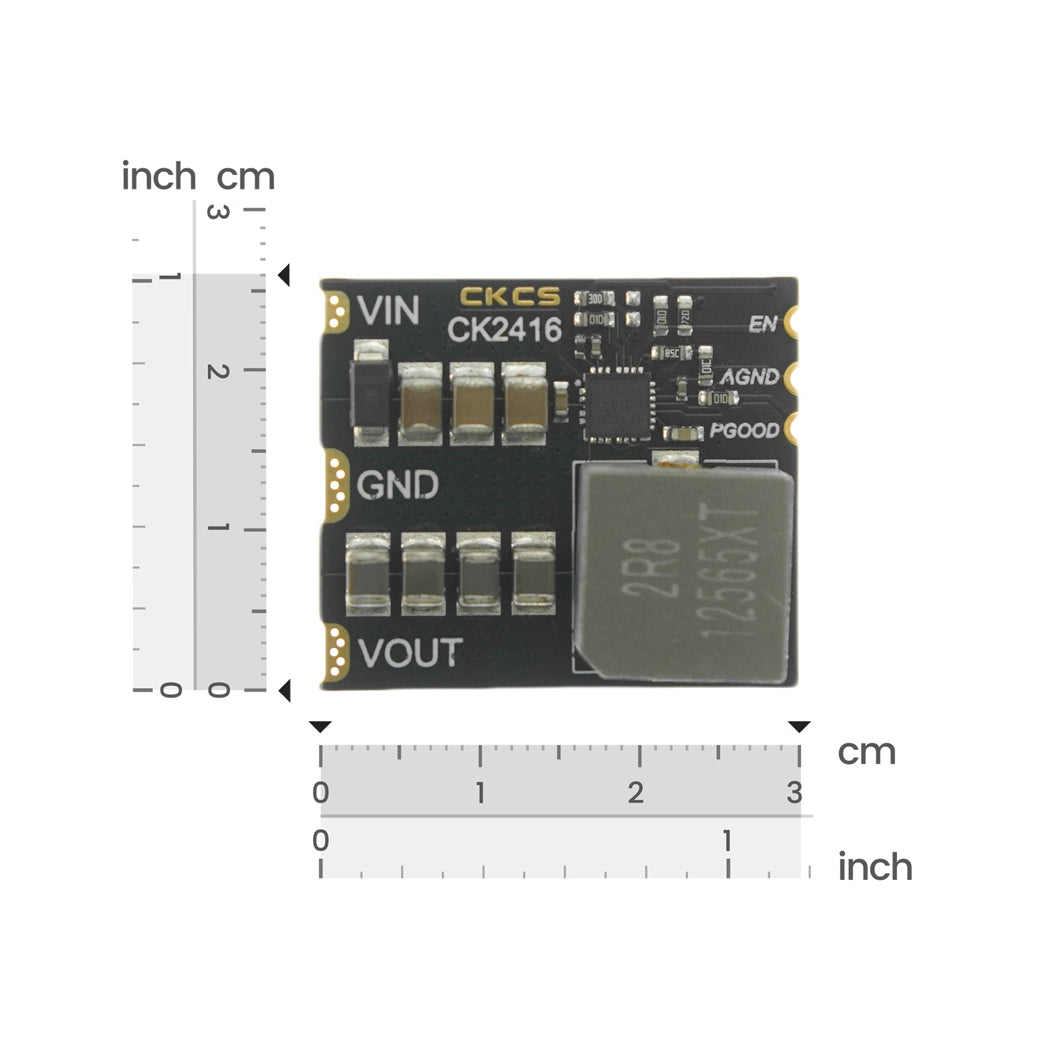

- Dimensions: 30 x 26 x 8mm
Applications
- Smart Robotics: Powering multiple actuators and sensors.
- Drone Systems: Driving ESCs and onboard electronics.
- High-Power LED Lighting: Ensuring stable and uniform illumination.
- Automotive Electronics: Supporting auxiliary power systems.
- Electronic Prototyping: Providing a versatile power solution for maker projects.
