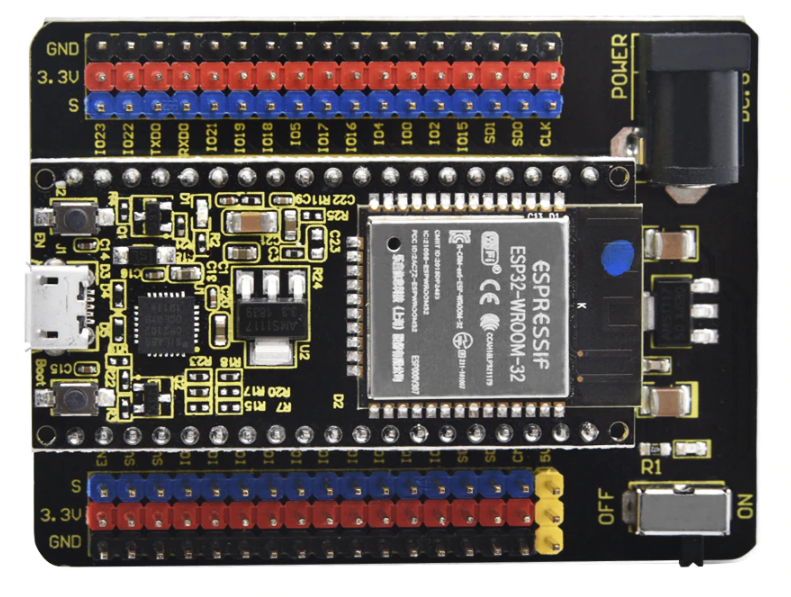

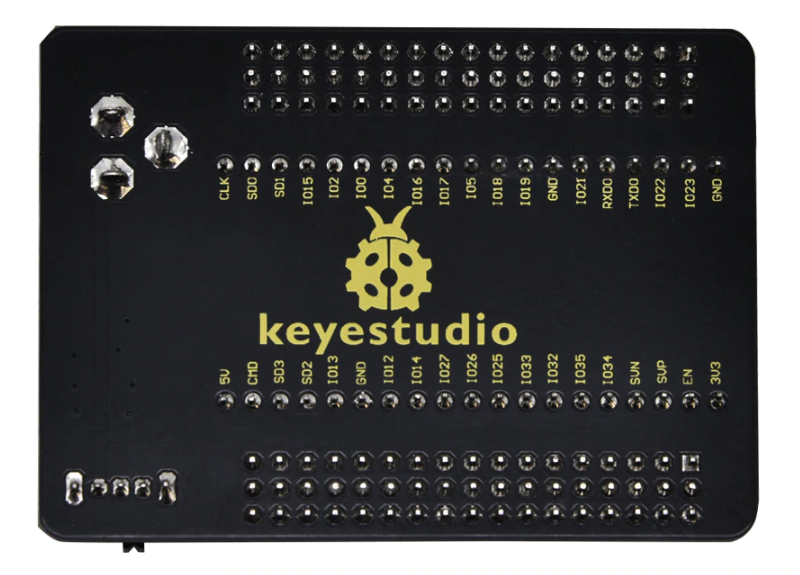

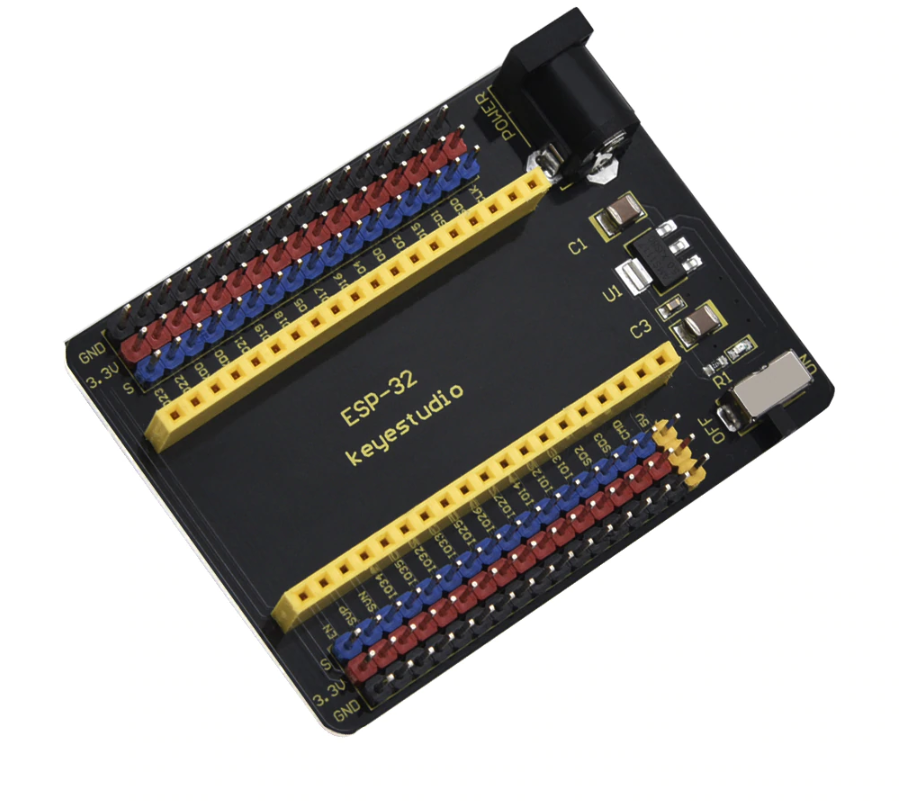

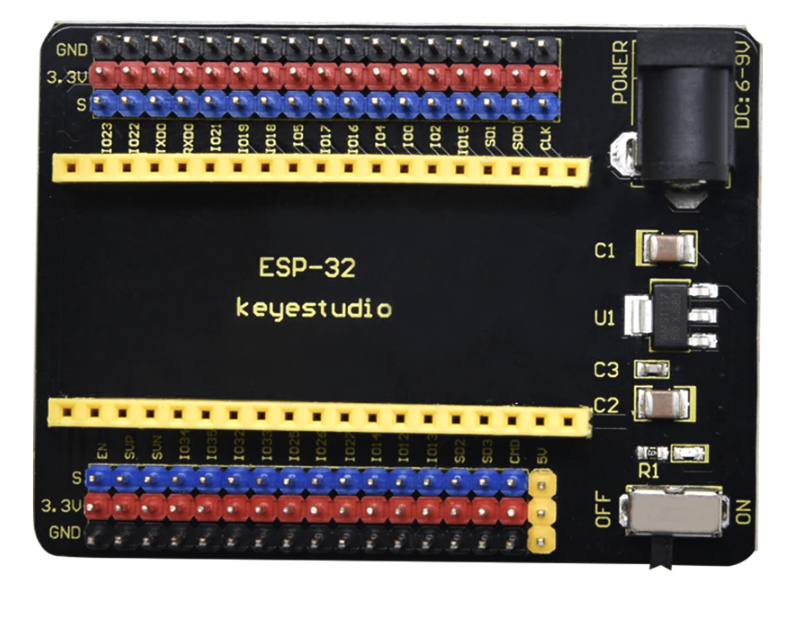

The ESP32 IO shield is designed to be compatible with the Keyestudio core board. The shield brings out all the pins in the form of 2.54mm headers.
In order to connect to sensors easily the shield has 2 rows of 2.54mm pin headers allowing to easily power sensor 3.3V sensors.
The shield also has a power circuit allowing the power of the shiled and the ESP-32 with 7-12Vdc. Finally the shield also has a built in power switch.
- Supply Voltage: 7-12Vdc
- Working Current: 60mA
- Operating Temperature: -25 to 65 degrees

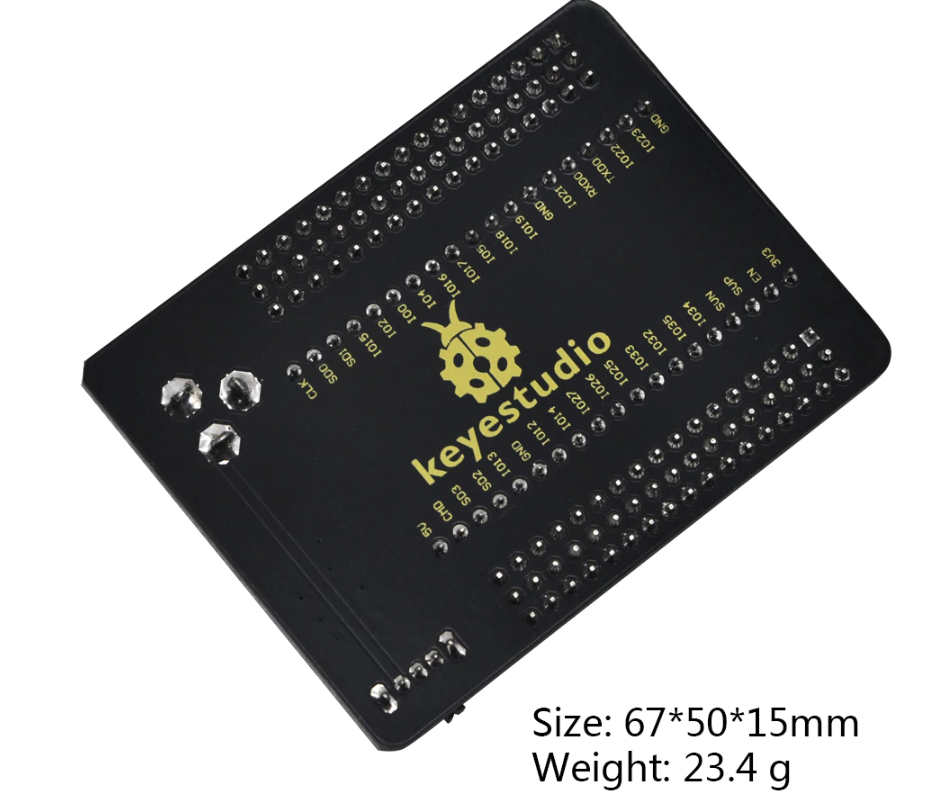

- Dimensions: 67x50x15mm
- Weight: 23.4g
