BIQU3D FLEXIBLE ALUMINIUM CLAMPING (5mm/8mm)

BIQU3DSKU: BG024/WZC000323 (DC)

Price:
Sale priceN$55.99

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

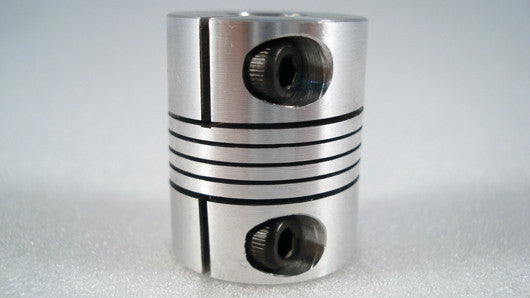

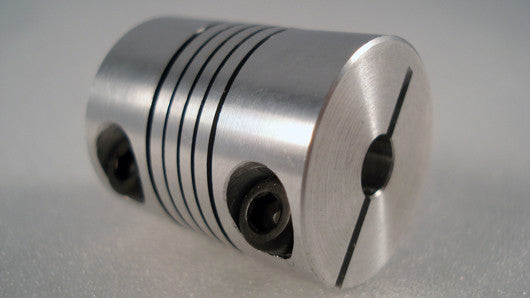

Looking for a way of connecting your motor to a shaft of sorts? This 5mm to 8mm set-screw coupler is just what you need.

These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects and well as any wobbling that may occur. There profile is such that they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means you can enjoy flexibility without increased backlash making them suitable for precision CNC work.

This coupler will connect a 5mm diameter shaft to an 8mm diameter shaft. A perfect add on for our stepper motors. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need an allen key to tighten/loosen the set-screws.

5MM/8MM FLEXIBLE ALUMINIUM COUPLER  -  TECHNICAL SPECIFICATIONS:

  • Material

– Aluminium

  • Length

– 25mm

  • Outer Diameter

– 19mm

  • Inner Diameter (Wide Side)

– 8mm

  • Inner Diameter (Small Side)

– 5mm
