Description

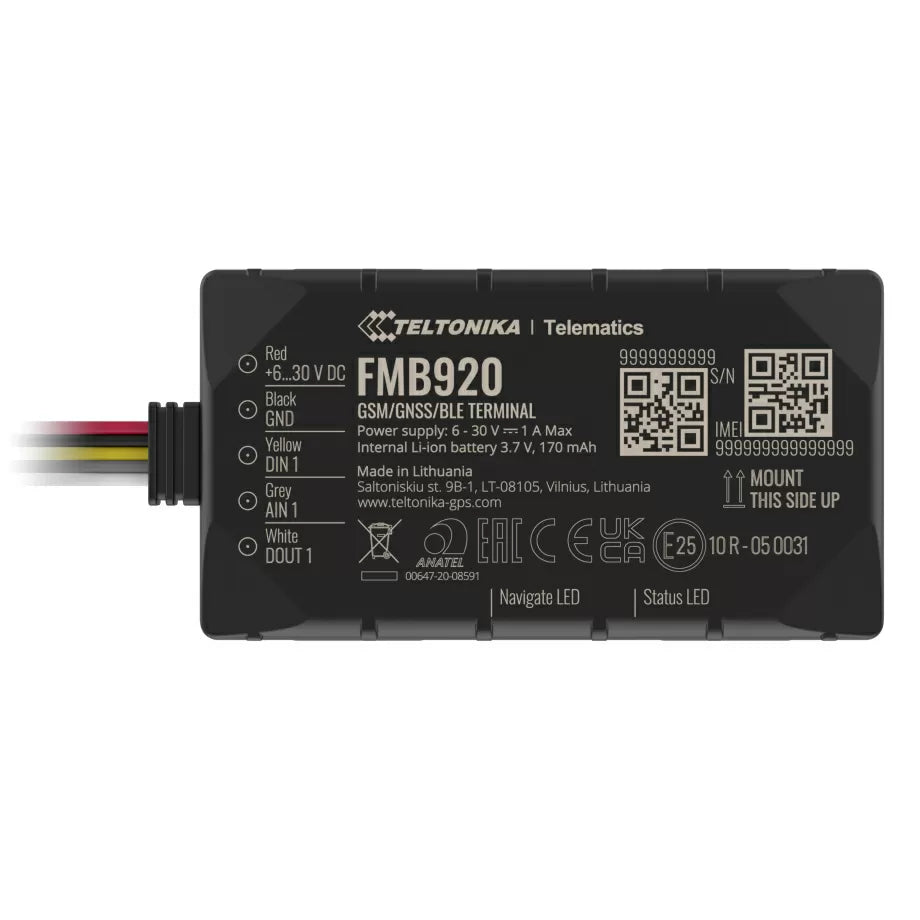

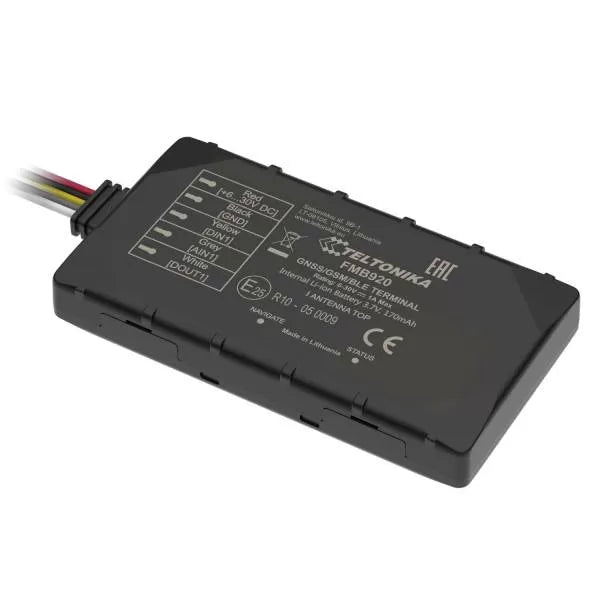

Teltonika FMB920 is compact and smart tracker with Bluetooth connectivity, internal high gain GNSS and GSM antennas and integrated backup battery. FMB920 is designed for light vehicles tracking in applications like insurance telematics, rental cars, recovery of stolen cars, public safety services, delivery transport, taxi and much more. Inputs/outputs extend device usage scenarios. Digital input can be used for ignition, door or alarm button status monitoring. Vehicle remote immobilizing may be achieved using FMB920 digital output.
Features
- 2G
- Blackbox
- BLE enabled
- GLONASS support
- Sending data to multiple servers
- Built-in odometer
Specifications
Module
Name: TM2500
Technology: GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 channel
Tracking sensitivity: -165 dBM
Accuracy: < 3 m
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s
Cellular
Technology: GSM
2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support: SMS (text/data)
Power
Input voltage range: 6 - 30 V DC with overvoltage protection
Back-up battery: 170 mAh Li-Ion battery (0.63 Wh)
Power consumption:
At 12V < 2 mA (Ultra Deep Sleep)
At 12V < 4 mA (Deep Sleep)
At 12V < 5 mA (Online Sleep)
At 12V < 6 mA (GPS Sleep)
At 12V < 25 mA (nominal)
Bluetooth
Specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner
Interface
Digital Inputs: 1
Digital Outputs: 1
Analog Inputs: 1
GNSS antenna: Internal High Gain
GSM antenna: Internal High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM
Memory: 128MB internal flash memory
Physical specification
Dimensions: 79 x 43 x 12 mm (L x W x H)
Weight: 54 g
Operating environment
Operating temperature (without battery): -40 °C to +85 °C
Storage temperature (without battery): -40 °C to +85 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP54
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C
Battery storage temperature:
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
