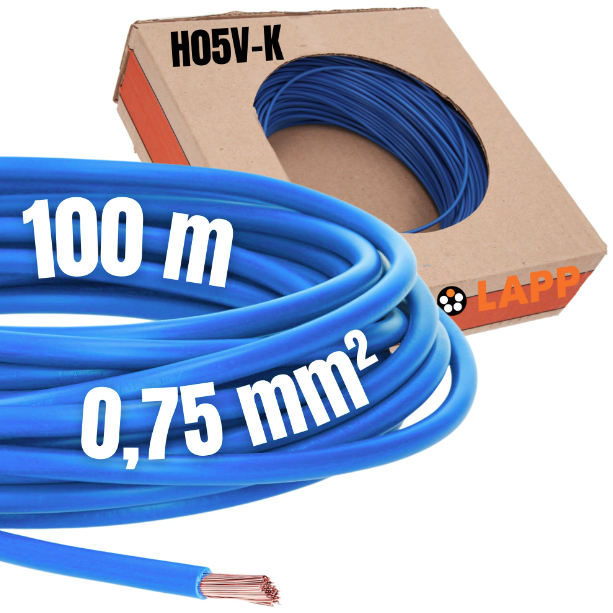

Description
Technical Data
- PVC single core acc. to
DIN VDE 0285-525-2-31 /
DIN EN 50525-2-31 / IEC 60227-3 -
Temperature range
flexing -5°C to +70°C
fixed installation -30°C to +80°C -
Nominal voltage
U0/U 300/500 V -
Test voltage
2000 V -
Minimum bending radius
fixed insatallation 4x outer Ø
Cable structure
- Bare copper conductor,
fine wire acc. to
DIN VDE 0295 cl.5 / IEC 60228 cl.5 - Core insulation of PVC
compound type TI1 acc. to
DIN VDE 0207-363-3 / DIN EN 50363-3 - Core identification: see table below
Properties
- The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
- Flame retardant acc. to
DIN VDE 0482-332-1-2 /
DIN EN 60332-1-2 / IEC 60332-1-2
Note
- The following colours are recommended:
black, white, blue, grey, brown, red,
orange, turquoise, violet and pink. - Exceptions are the colours green and
yellow; these are only permitted if the
safety regulations allows. Green is
permitted for the identification of
luminous decorative chains. - All 2-coloured combinations of the
above single colours are allowed
Application
These single cores are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
