Description

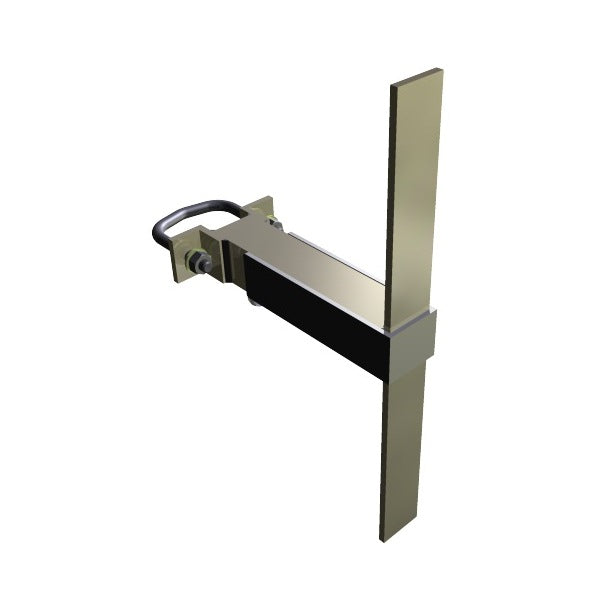

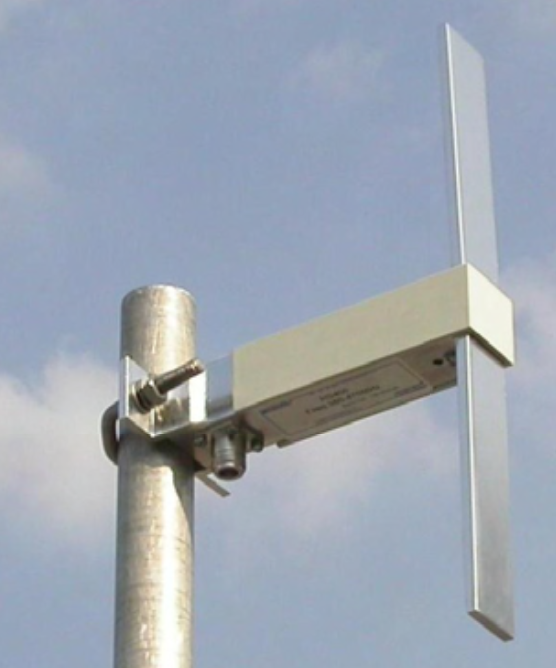

The Heavy Duty Dipoly provide unity gain between 380-470 Mhz. The antenna can be stacked to increase gain. The metal parts of the antenna is grounded reducing interference.
Specifications:
- Frequency: 380 – 470 MHz
- Average Gain: 0 dBd
- Nominal Gain: 2 dBd on support pipe
- VSWR: ≤ 1,5:1
- Polarisation: Vertical

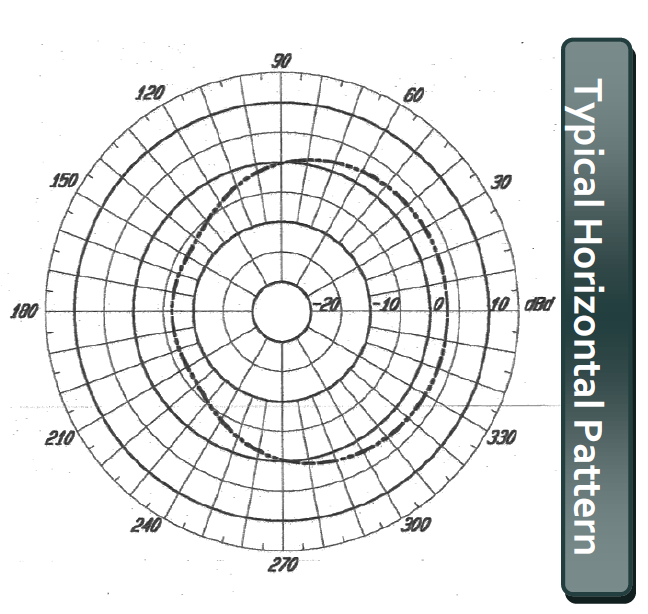

- H-Plane 3 dB Beam Width: 180°

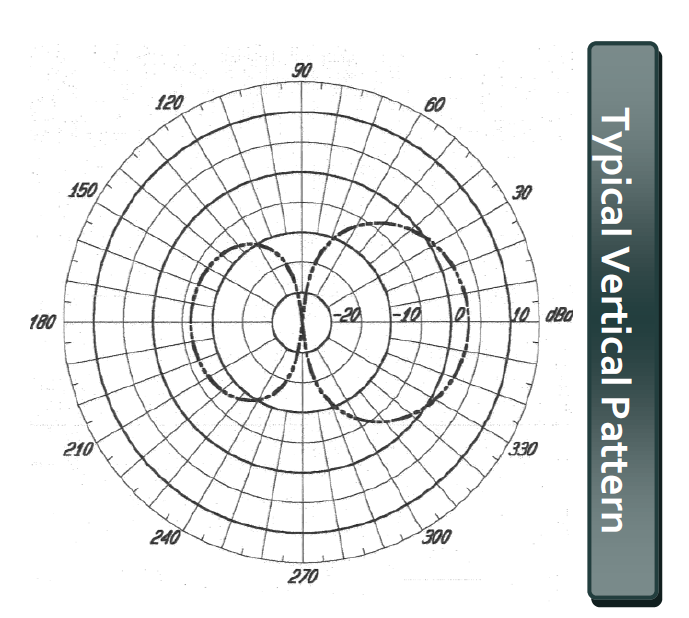

- E-Plane 3 dB Beam Width: 66°
- Rated Power: 500 W
- Impedance: 50 Ω
- Termination: N-Type female
- Surge Protection: All metal parts DC grounded
