Description
JST Connector Kit 2.54mm

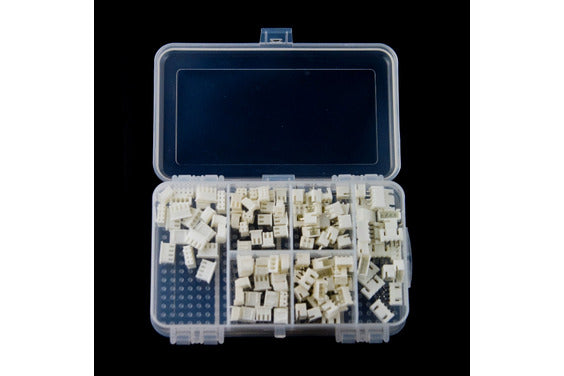

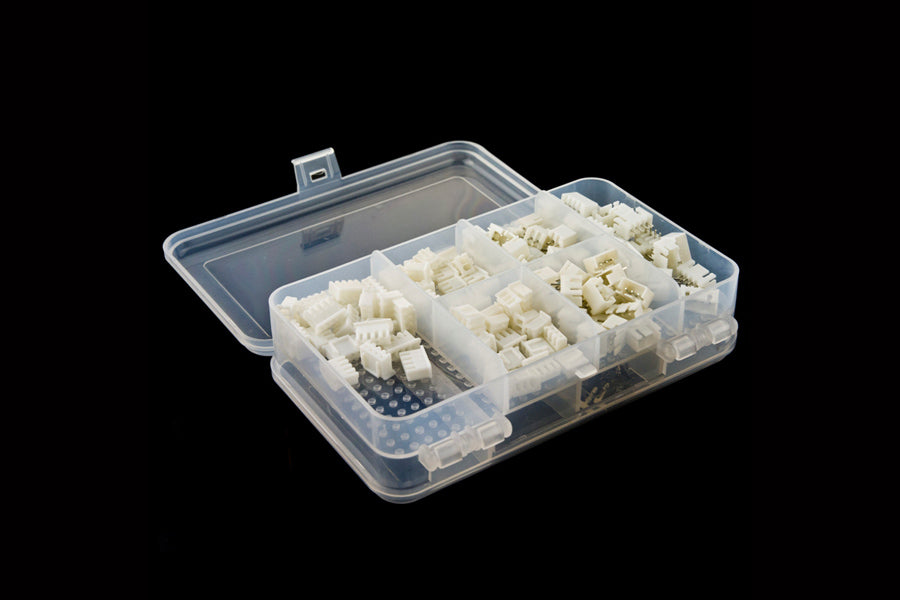

The JST kit includes:
- JST 2.54mm XHP-2 housing x20
- JST 2.54mm XHP-3 housing x20
- JST 2.54mm XHP-4 housing x20
- JST 2.54mm B2B-XH-A through-hole type shrouded header x20
- JST 2.54mm B3B-XH-A through-hole type shrouded header x20
- JST 2.54mm B4B-XH-A through-hole type shrouded header x20

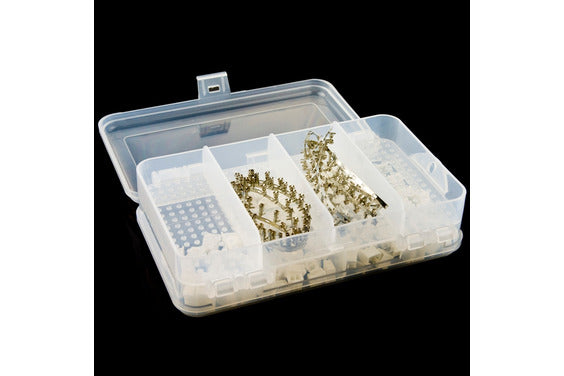

- crimp contact x100
- Two-sided Compartment Parts Box x1
Specifications
- Current rating:3A AC,DC (AWG #22)
- Voltage rating:250V AC,DC
- Temperature range：-25℃ to +85℃（including temperature rise in applying electrical current）
- Contact resistance: Initial value/10m Ω max.
- After environmental testing/20m Ω max.
- Insulation resistance: 1000M Ω min.
- Withstanding voltage: 1000V AC/minute
- Applicable wire: AWG#30~#22
- Applicable PC board thickness: 1.6mm (0.06")
