Description

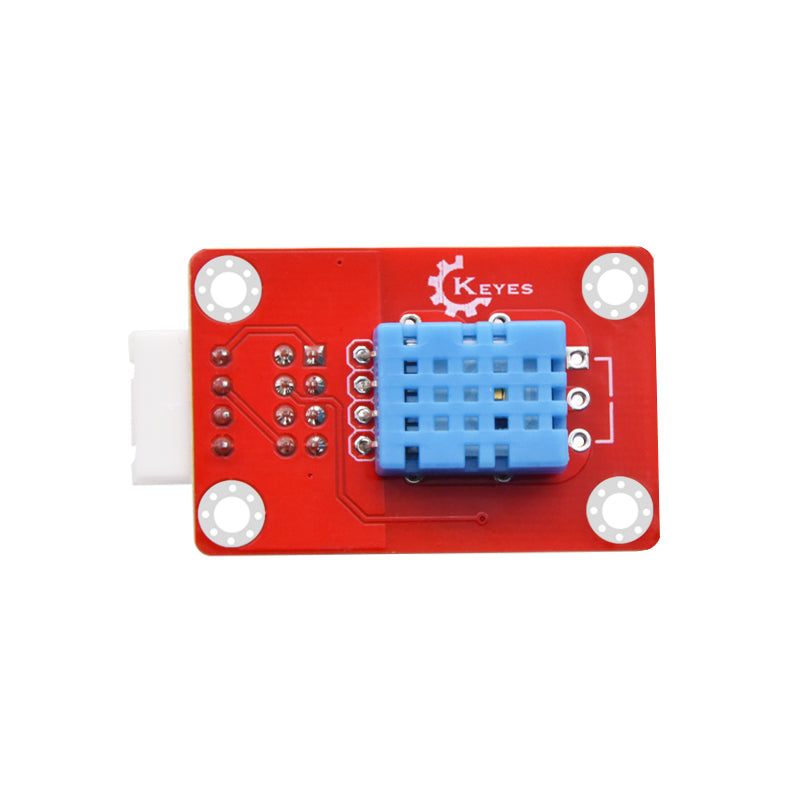

DHT11 Temperature and Humidity Module is one of the most commonly used components for setting the smart home when we are doing the Internet of Things.

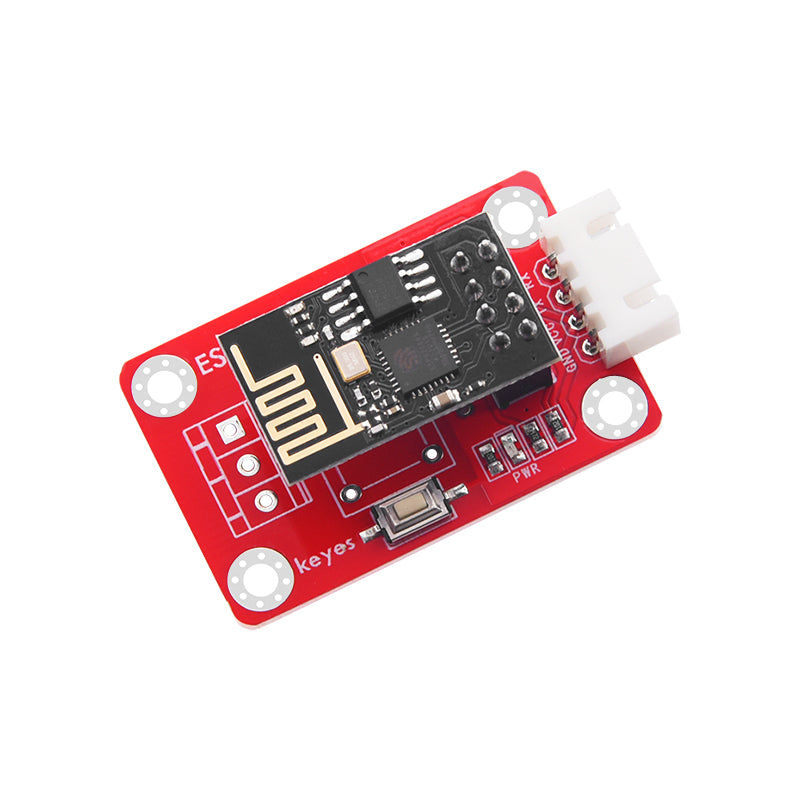

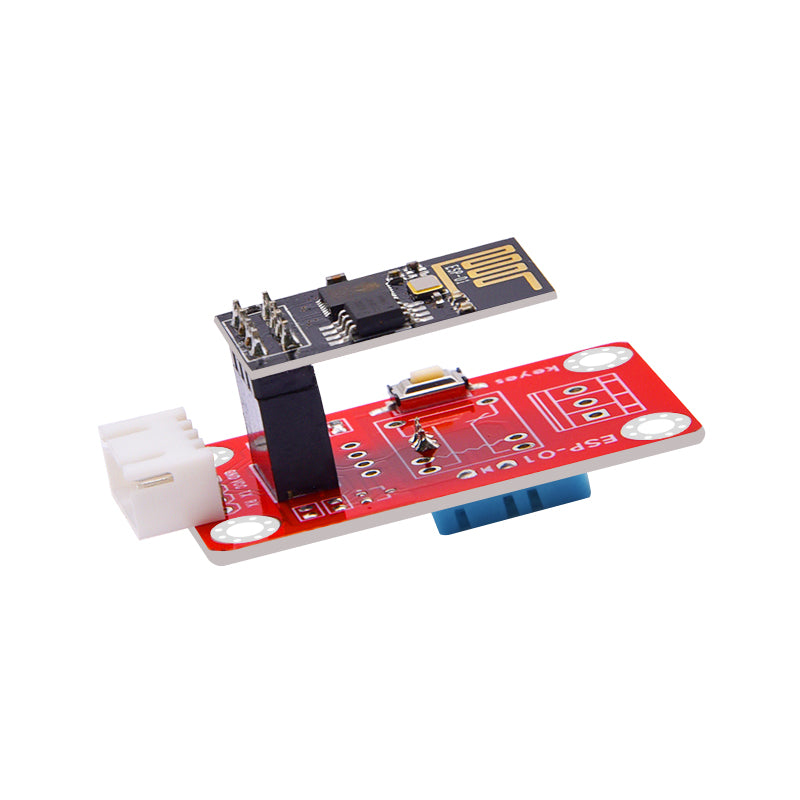

For wireless control, we specially designed this ESP-01 DHT11 Temperature and Humidity module. The DHT11 Temperature and Humidity module is equipped with an ESP8266-01 Wifi module, which can access to the wireless network.
You can remote control any other devices according to the temperature and humidity data measured by the DHT11 module.
For simple use, we provide our own compiled firmware, the firmware is server mode. The specific information are as follows:
Specifications:
- Working voltage: DC 3V--3.3V
- Main control chip: ESP8266-01
- Button function: reset button
- Temperature range: 0℃ to 50℃±2℃
- Humidity range: 20-90%RH±5%RH
- Dimensions：42mm*24mm*22mm
