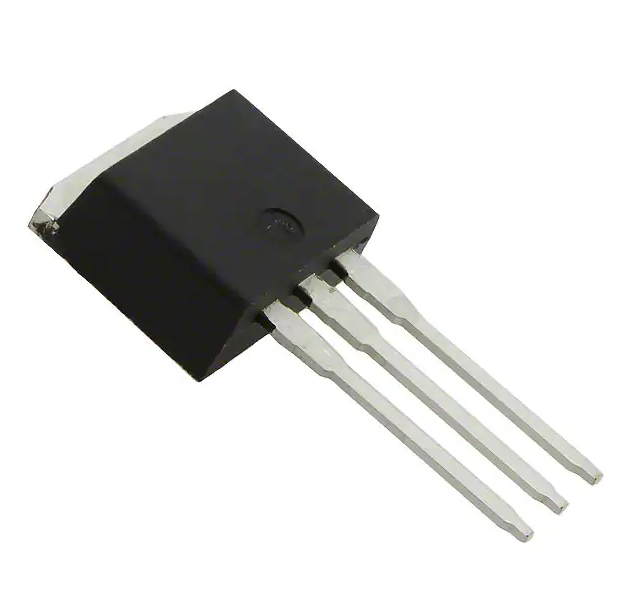

DIGI-KEY MOSFET N-CH 500V 11A TO262-3

Digi-KeySKU: DK035/IRFSL11N50APBF

Price:
Sale priceN$87.40

Tax included

Stock:
In stock

Description

MOSFET N-CH 500V 11A TO262-3

Specifications

Mfr

Vishay Siliconix

Series

-

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

500 V

Current - Continuous Drain (Id) @ 25°C

11A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

550mOhm @ 6.6A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

51 nC @ 10 V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

1426 pF @ 25 V

FET Feature

-

Power Dissipation (Max)

190W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-262-3

Package / Case

TO-262-3 Long Leads, I²Pak, TO-262AA

Base Product Number

IRFSL11
