NEXTION Enhanced 7.0 Inch HMI (NX8048K070)
NEXTION Enhanced 7.0 Inch HMI (NX8048K070)
NEXTION Enhanced 7.0 Inch HMI (NX8048K070)
Roll over image to zoom in Click on image to zoom
NEXTION Enhanced 7.0 Inch HMI (NX8048K070)NEXTION Enhanced 7.0 Inch HMI (NX8048K070)NEXTION Enhanced 7.0 Inch HMI (NX8048K070)

NEXTION Enhanced 7.0 Inch HMI (NX8048K070)

LafvinSKU: NX8048K070
Price:
N$2,398.07

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

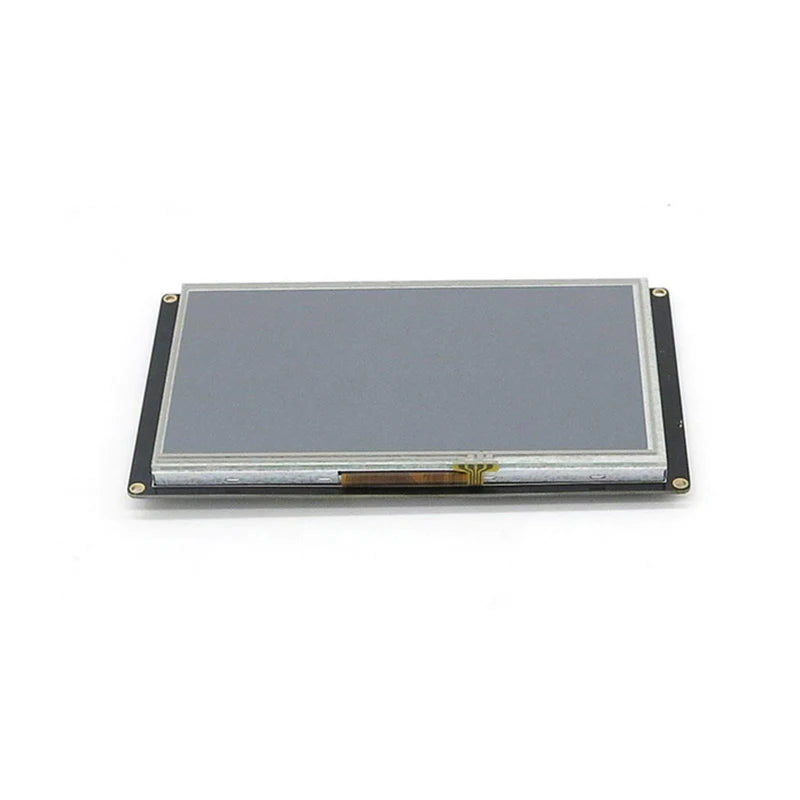

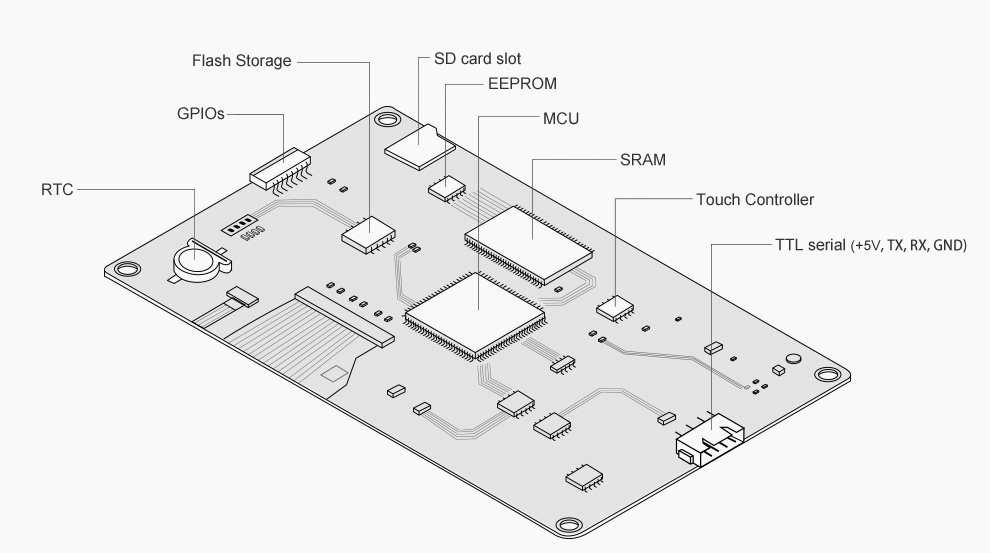

The Nextion enhanced HMI displays offers a resistive touch HMI. The HMI has general purpose inputs and outputs onboard and supports 65K colors. It has a built in RTC and 32MB flash memory to store your application on.

Specifications

  • Size: 7"
  • Resolution: 800*480
  • Touch Panel: Resistive Touch
  • Color: 65536
  • Flash: 32MB
  • RAM: 8192 Bytes
  • MCU: 108 Mhz
  • EEPROM: 1024 Byte
  • GPIOs: 8
  • RTC: Yes
  • Enclosed: No

Documents

Datasheet

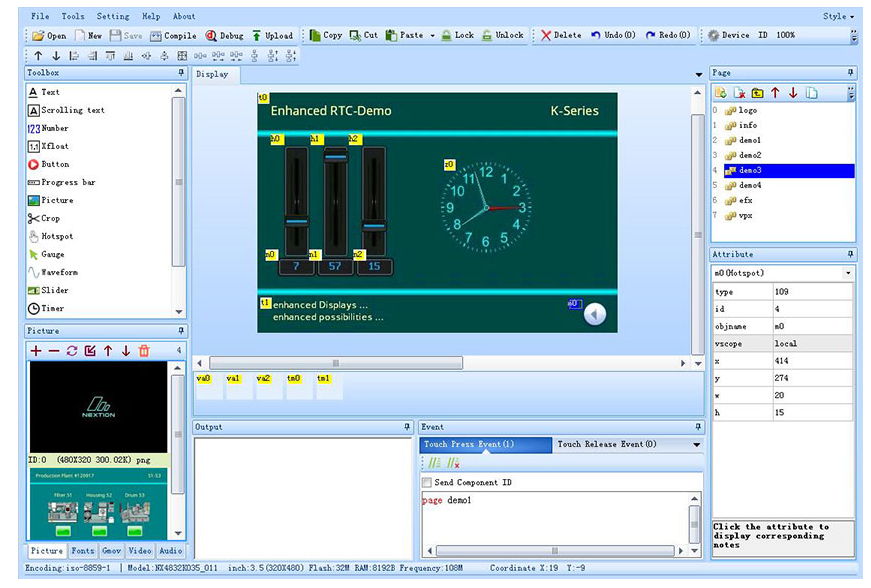

Editor Guide
Instruction Set
