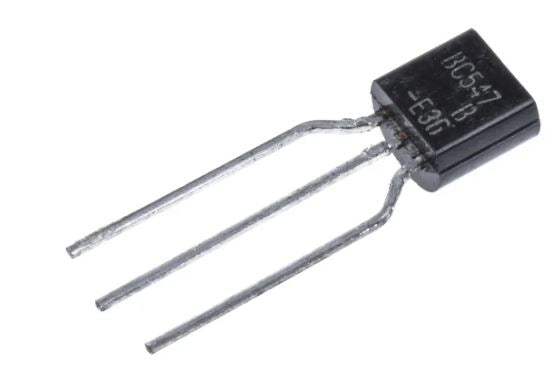

RS COMPONENTS ON Semi BC547BTA NPN Transistor, 100 mA, 45 V, 3-Pin TO-92

Small BJT NPN Transistor 40-50V.

Specifications:

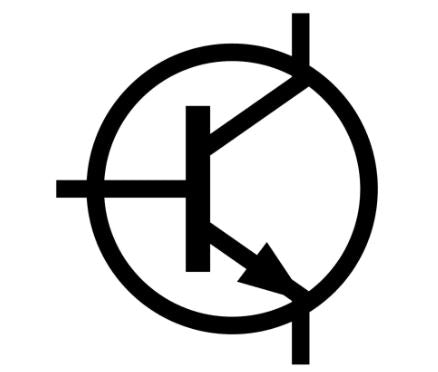

• Transistor Type: NPN
• Maximum DC Collector Current: 100 mA
• Maximum Collector Emitter Voltage: 45 V
• Package Type: TO-92
• Mounting Type: Through Hole
• Maximum Power Dissipation: 500 mW
• Minimum DC Current Gain: 200
• Transistor Configuration: Single
• Maximum Collector Base Voltage: 50 V
• Maximum Emitter Base Voltage: 6 V
• Maximum Operating Frequency: 300 MHz
• Pin Count: 3
• Number of Elements per Chip: 1
• Height: 5.33mm
• Minimum Operating Temperature: -65 °C
• Maximum Base Emitter Saturation Voltage: 0.9 V
• Dimensions: 5.33 x 5.2 x 4.19mm
• Width: 4.19mm
• Maximum Collector Emitter Saturation Voltage: 0.6 V
• Length: 5.2mm
• Maximum Operating Temperature: +150 °C

Packaging:

• 1 BC547BTA NPN Transistor

Documents

Datasheet
