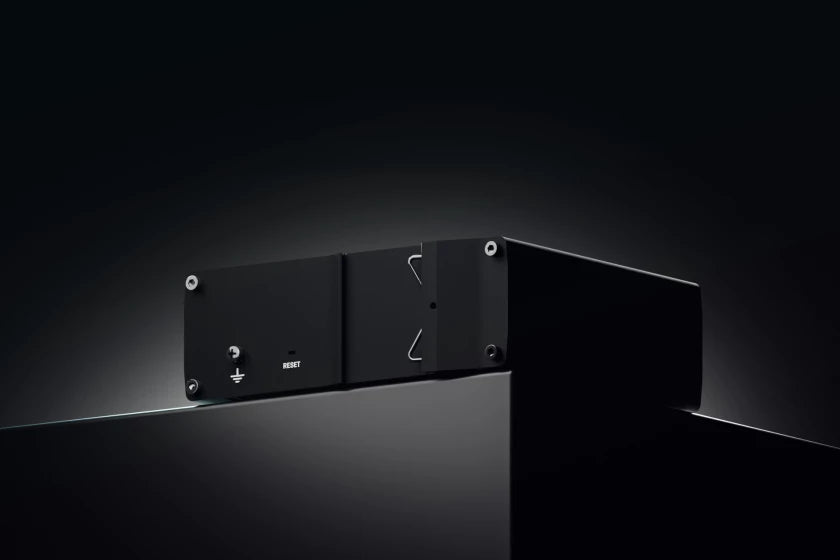

TSW202 is the first-ever Teltonika Networks managed PoE + Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fibre optic communication and 8 Gigabit Ethernet ports providing 30 W of power each.
Specifications
ETHERNET
-
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
-
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x
POE OUT
-
-
802.3af and 802.3at Alternative B
-
PoE Max Power per Port (at PSE)
-
Total PoE Power Budget (at PSE)
-
Maximum Ethernet cable length
NETWORK
-
MRP client role, MRP manager role
-
Loop protection, Forwarding table, VLAN, STP/RSTP
-
-
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
-
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
QOS
-
Port priority, DSCP priority, 802.1p priority, TOS
-
-
Rate limiting, storm control
-
DIAGNOSTICS
-
Cable diagnostic, ping, traceroute, nslookup
API
-
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
FIRMWARE / CONFIGURATION
-
Update FW from file, check FW on server, configuration profiles, configuration backup
-
-
Update FW/configuration for multiple devices at once
-
Update FW without losing current configuration
FIRMWARE CUSTOMISATION
-
WitchOS (OpenWrt based Linux OS)
-
Busybox shell, Lua, C, C++
-
SDK package with build environment provided
PERFORMANCE SPECIFICATIONS
POWER
-
2-pin industrial DC power socket
-
-
PoE-out input voltage range
-
Idle: < 3 W / Max: 8 W / PoE Max: 248 W
PHYSICAL INTERFACES
-
8 x RJ45 ports, 10/100/1000 Mbps
-
-
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
-
1 x 2-pin industrial DC power socket
-
Reset
Software reset button
-
Other
1 x Grounding screw
PHYSICAL SPECIFICATION
-
Anodized aluminum housing and panels
-
-
-
Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
-
-
10% to 90% non-condensing
-
Ingress Protection Rating
REGULATORY & TYPE APPROVALS
-
CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, NBTC, Profinet
EMC EMISSIONS & IMMUNITY
-
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
-
-
-
-
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
-
-
SAFETY
-
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
