Description
High-performance Raspberry Pi NVMe SSDs are capable of the following performance, when accessed using a 1-lane PCI Express 2.0 bus:
| Density | IOPS5 (4KB random read) | IOPS (4KB random write) |
| 256GB | 40k | 70k |
| 512GB | 50k | 90k |
| 1TB | TBC | TBC |
Features

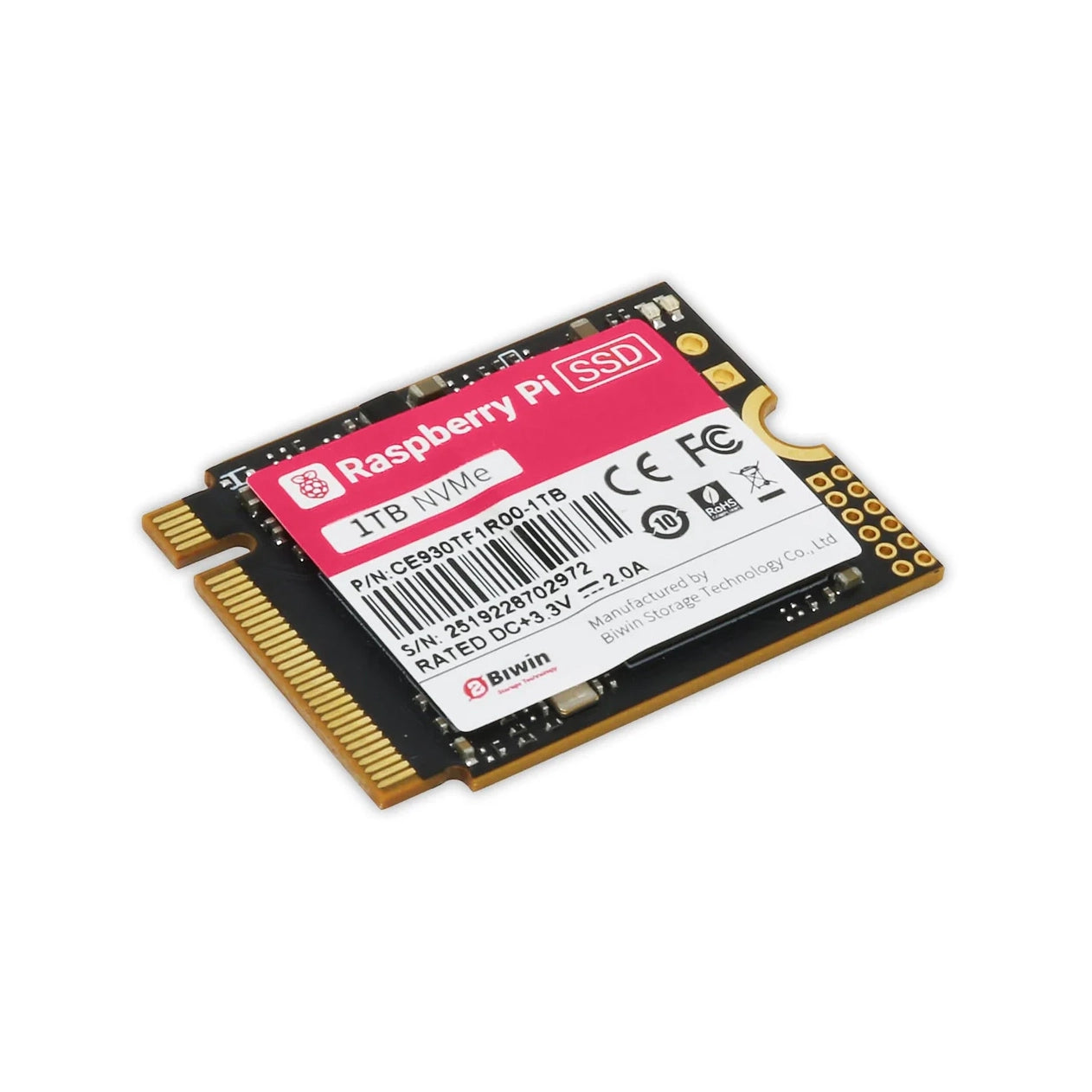

- M.2 2230-format NVMe SSD for Raspberry Pi
- Official Raspberry Pi SSD
- Compatible with Raspberry Pi 5 (when used with a compatible SSD HAT)
- Complies with PCIe Gen 3 standard
- NVMe 1.4 register interface and command set
- Individually packaged in anti-static bags
- Choice of 256GB, 512GB or 1TB capacity
- Reliable and fast storage or boot drive for your Raspberry Pi 5
- Operating temperature: 0℃ to 70℃ (ambient)
- Dimensions: 30mm x 22mm x 1.35mm (2230 format)
