Description

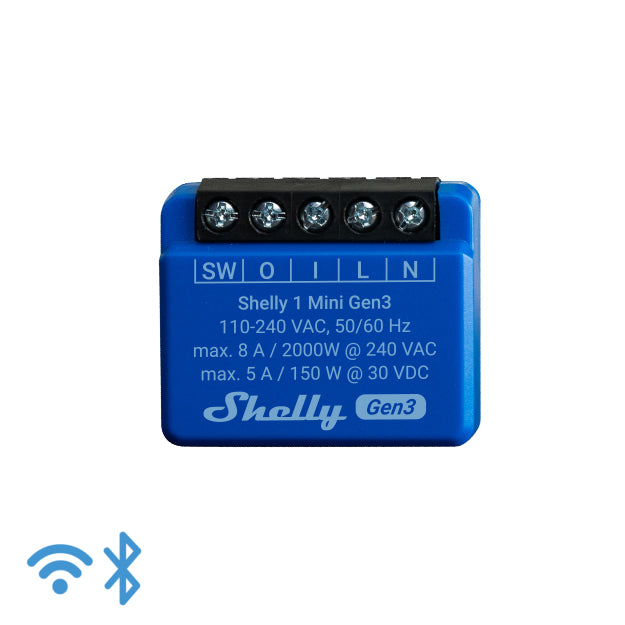

Designed with convenience in mind, the Shelly 1 Mini Gen3 smart switch allows you to set up lighting control wherever you need it. Thanks to its compact size, Shelly 1 Mini Gen3 can discreetly fit within the ceiling rose of your lamp or in jammed wall boxes.
Shelly’s Mini Gen3 series is equipped with a powerful Shelly chip boasting 8MB of memory, doubling both device efficiency and responsiveness. With more memory and a more advanced processor, this device ensures smoother and faster operation with extended functionality.
Make any small electrical appliance smart. Shelly 1 Mini Gen3’s 8A limit is perfect for transforming small to medium-sized appliances into smart devices. It can be discreetly placed inside the appliance’s casing, avoiding the need for additional external wiring or modifications.
The device can be accessed, controlled and monitored remotely through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network, or it can also be operated through cloud home automation services.
Specifications
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 29x35x16 ±0.5 mm / 1.11x1.35x0.63 ±0.02 in |
| Weight: | 19 ±1 g / 0.65 ±0.04 oz |
| Mounting: | Wall box |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Shell material: | Plastic |
| Color: | Blue |
| ENVIRONMENTAL | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| ELECTRICAL | |
| Power supply: | 110 - 240 VAC |
| Relay: | Dry, NO contact, 1-pole, µ contact |
| External protection: | 10 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | < 1.2 W |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | 30 V |
| Max switching current AC: | 8A |
| Max switching current DC: | 5A |
| Max switching power AC: | 2000 W |
| Max switching power DC: | 150 W |
| Power measurement: | No |
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| RADIO | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4,2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| (Depends on local conditions) | |
| MCU | |
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
| FIRMWARE CAPABILITIES | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| MQTT: | Yes |
| UDP: | Yes |
| Scripting: | Yes |
