Description
With the Plus range of Shelly products, you have even better home automation experience and enhanced lighting control!

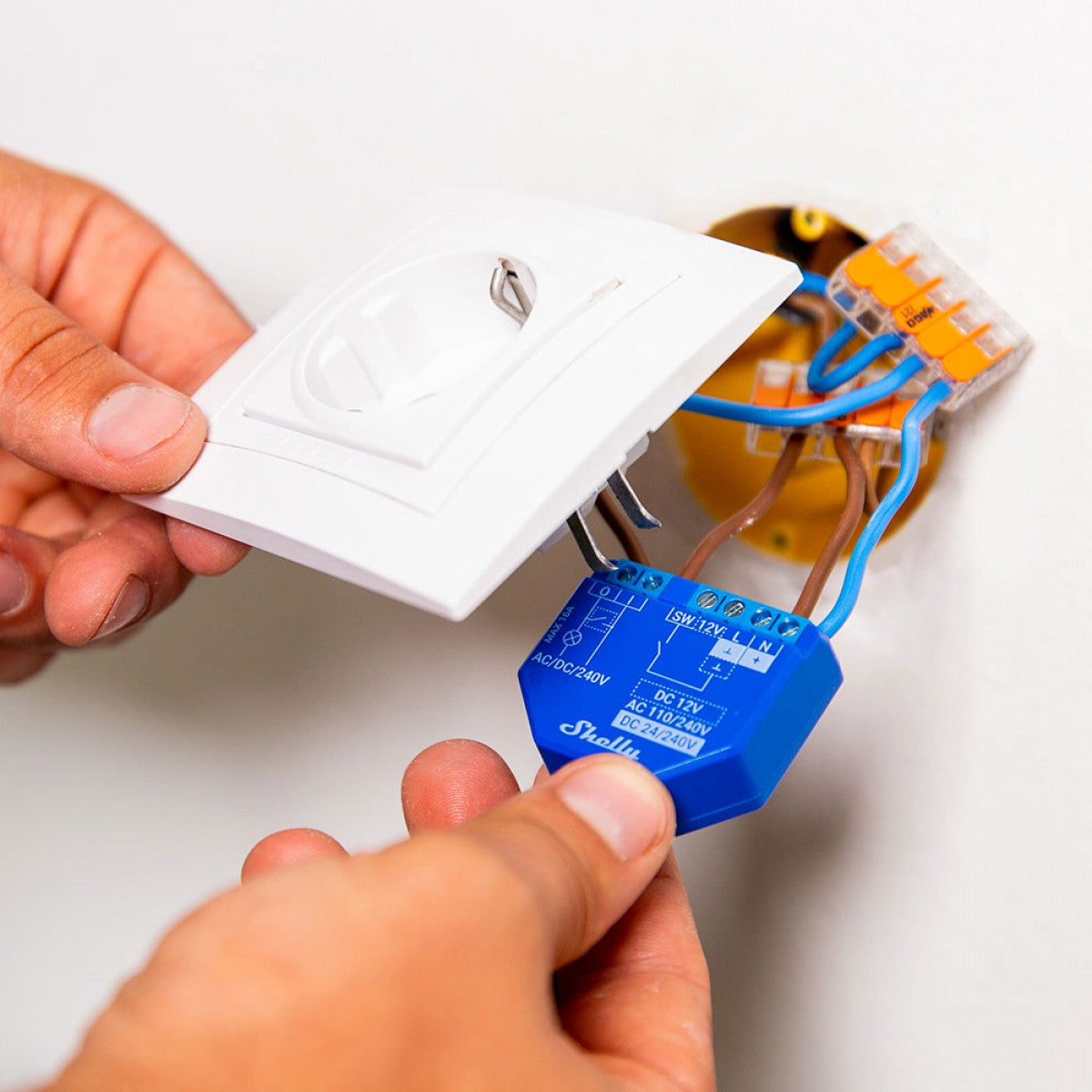

Automatization of the lights, garage door, the irrigation system, bathroom fan, any old electrical appliances… you name it! Shelly Plus 1 has numerous applications providing enhanced smart home control. Small enough to fit behind every wall switch or wall socket, Shelly Plus 1 is retrofit and can be installed in less than 10 minutes.
Control wide range of home appliances and office equipment (lights, power lines, security systems, heating radiators, air conditioners, etc.) from anywhere with the smallest WiFi-operated relay switch, with Bluetooth connection
Specifications
| POWER | |
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Maximum load | 16A |
| Power supply DC | 24 – 240V / 12V stabilized |
| SPECIAL FUNCTIONS | |
| Dry contacts | Yes |
| Roller shutter mode | No |
| Device temperature protection | Yes |
| Overload protection | No |
| Power measurement | No |
| Working without a neutral line | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts(mJs) | Yes |
| Channels | 1 Channel |
| Operational temperature | 0°C to + 40 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| DIMENSIONS | |
| Size | 41mm x 36mm x 15mm |
