Description
With the Plus range of Shelly products, you have even better home automation experience and enhanced lighting control!

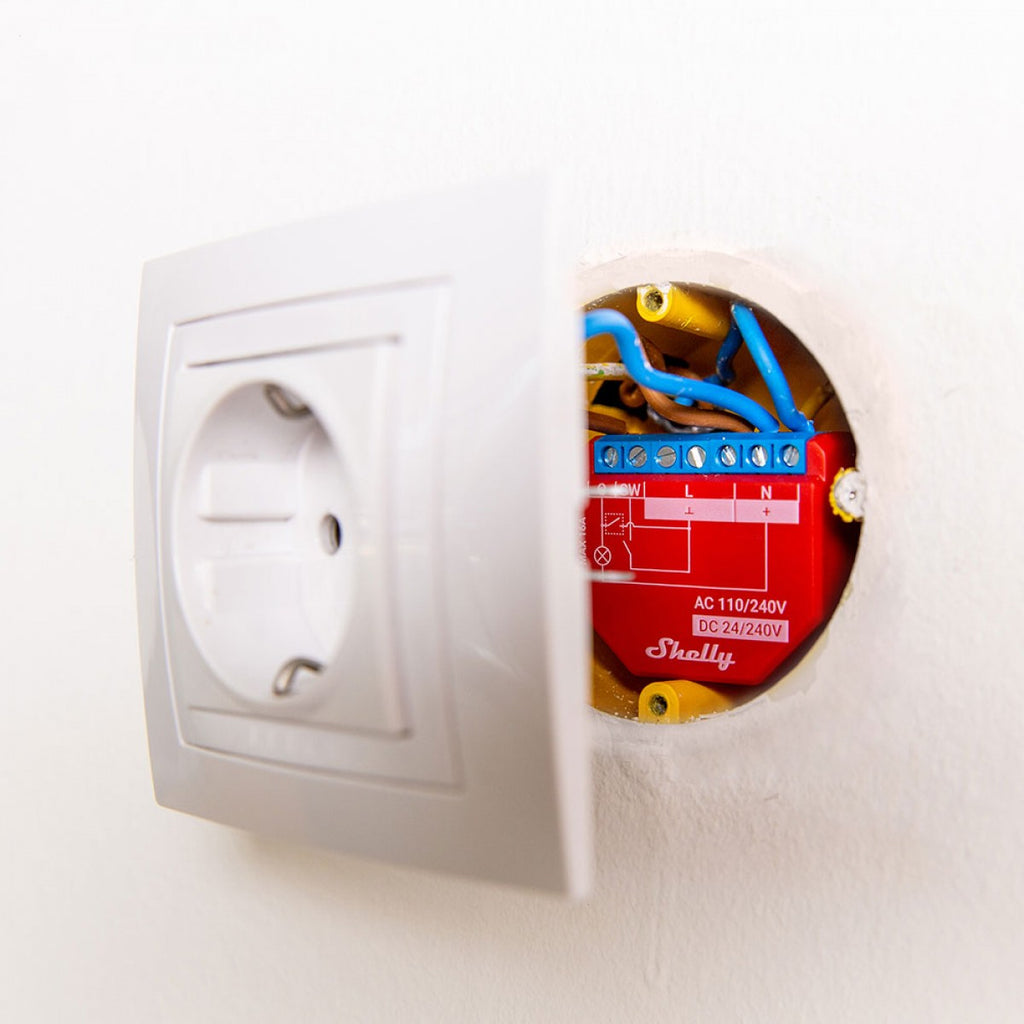

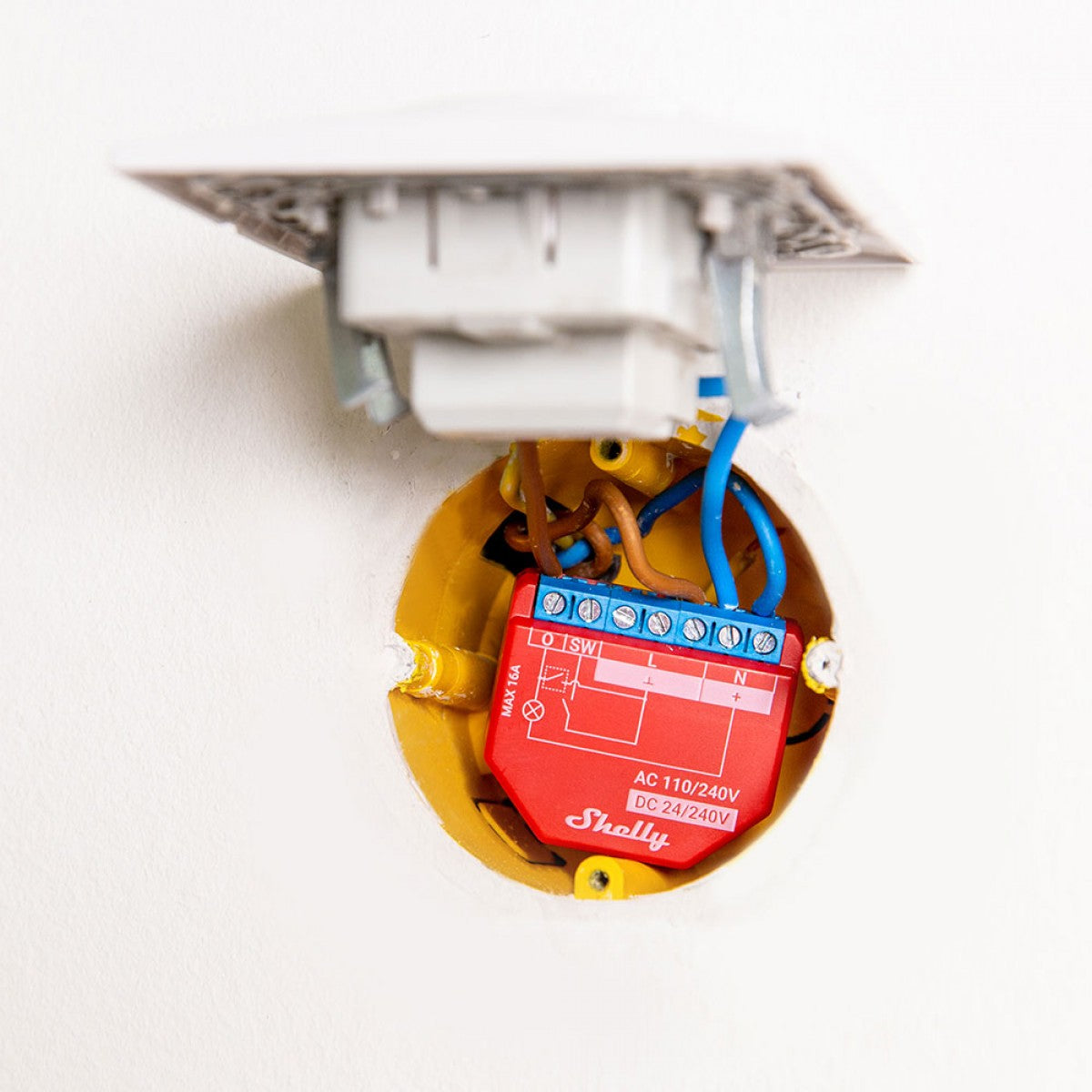

From automatization of the lights to electrical appliances control, Shelly Plus 1PM provides precise power metering and free cloud data storage. Small enough to fit behind every wall switch or wall socket, Shelly 1PM is retrofit and can be installed in less than 10 minutes.
Specifications
POWER | |
Power supply AC | 110-230V ±10%, 50/60Hz |
Maximum load | 16A |
Power supply DC | 24 – 240V |
SPECIAL FUNCTIONS | |
Dry contacts | No |
Roller shutter mode | No |
Device temperature protection | Yes |
Overload protection | Yes |
Power measurement | Yes |
Working without a neutral line | No |
FEATURES | |
HTTP/HTTPS webhooks | Yes |
Custom scripts(mJs) | Yes |
Channels | 1 Channel |
Operational temperature | 0°C to + 40 °C |
Device power consumption | < 1 W |
Intelligent On/Off | Yes |
Local and remote control | Yes |
Sunrise/Sunset | Yes |
Weekly Schedule | Yes |
UL Listed option | No |
CONNECTIVITY | |
Wireless | Yes |
Wi-Fi Protocol | 802.11 b/g/n |
Wi-Fi Radio frequency | 2412 - 2484 MHz |
Wi-Fi Radio signal power | 1mW |
Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
Bluetooth | Yes |
DIMENSIONS | |
Size | 41mm x 36mm x 15mm |
