Description

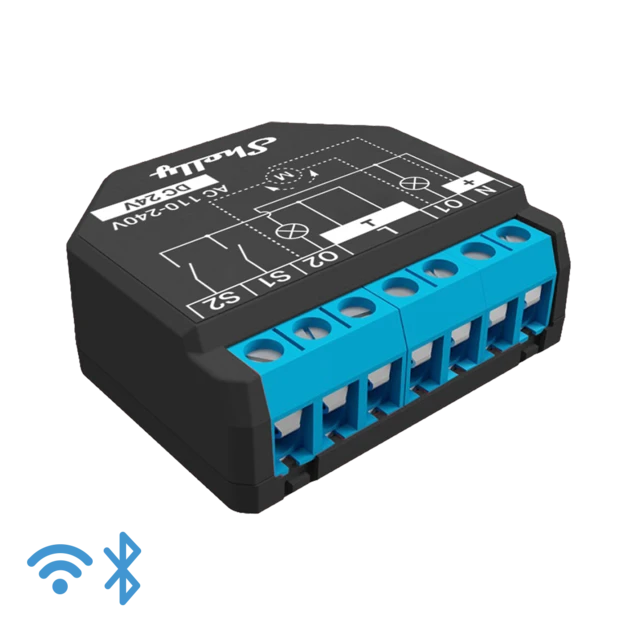

2 channel Wi-Fi relay with power metering and cover (roller) control
Shelly Plus 2PM is a one-phase, two channel smart relay supporting up to 10A per channel and 16A total current (18A peak). It is equipped with two power meters for each channel and an overpower protection function to limit your energy consumption. Cover (roller) control allows for the control and monitoring of roller shutters, blinds, curtains, gates, or other bi-directional AC motors.
- Wi-Fi operated – Connects to your Wi-Fi network. No HUB required!
- Bluetooth – Add devices quick and easy via Bluetooth connection, using Shelly Cloud App
- 2 channels on the same phase
- Power metering on each channel
- Cover (roller) control- automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, other bi-directional motors
- Wide range of voltage support
- Scripting, schedules and webhooks
Specifications
POWER |
|
Power supply AC | 110-240V ±10%, 50/60Hz |
Power supply DC | 24 V ±10%, |
Channels | 2 channels |
Max. current per channel | 10A |
Max. total device current | 16A (18A peak) |
Max. switching voltage | 240 VAC / 30 VDC |
SPECIAL FUNCTIONS |
|
Dry contacts | No |
Cover (roller) control | Yes, with position control - roller shutters, blinds, awnings, curtains, gates, shades, sliding door, garage door, bi-directional AC motors |
Overload protection | Yes |
Power measurement | Yes |
Overtemperature protection | Yes |
Working without a neutral line | No |
FEATURES | |
HTTP/HTTPS webhooks | Yes |
Custom scripts (mJs) | Yes |
Operational temperature | -20°C to + 40 °C |
Device power consumption | < 1.4 W |
Local and remote control | Yes |
Sunrise/Sunset | Yes |
Weekly Schedule | Yes |
UL Listed option | No |
CONNECTIVITY |
|
Wireless | 802.11 b/g/n |
Wi-Fi Radio frequency | 2400 – 2500 MHz |
Wi-Fi Radio signal power | 1mW |
Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
DIMENSIONS |
|
Size | 42 x 38 x 17mm |
