SHELLY Uni

ShellySKU: SH005/SHELLY Uni

Price:
Sale priceN$288.62

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

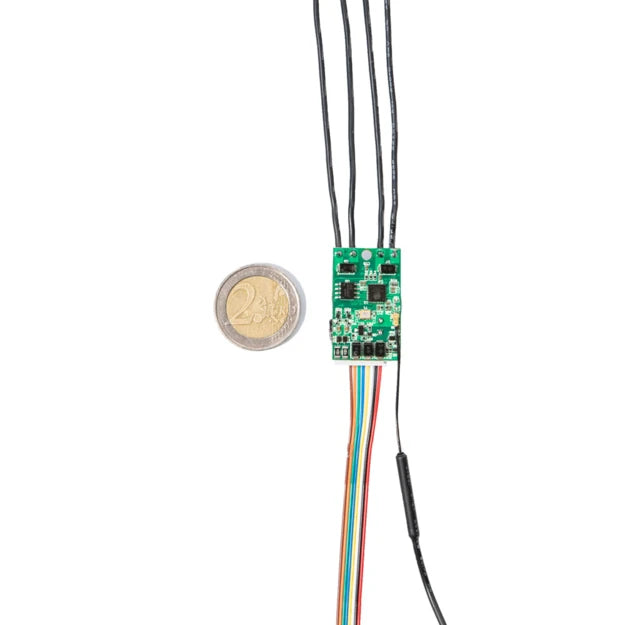

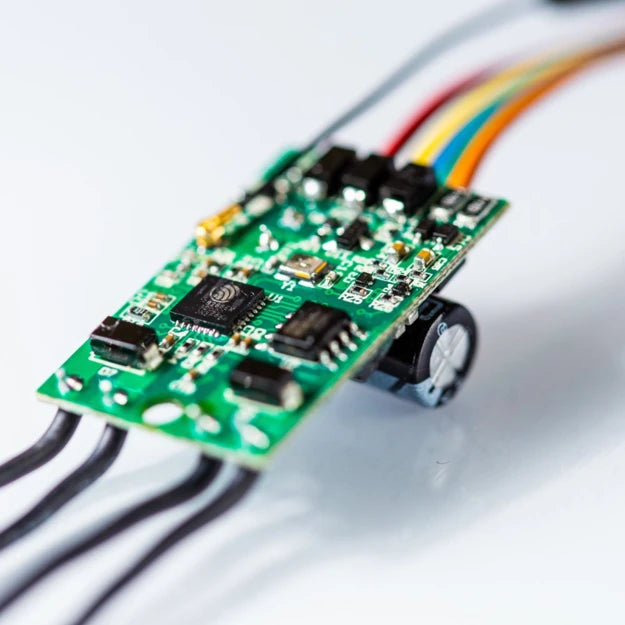

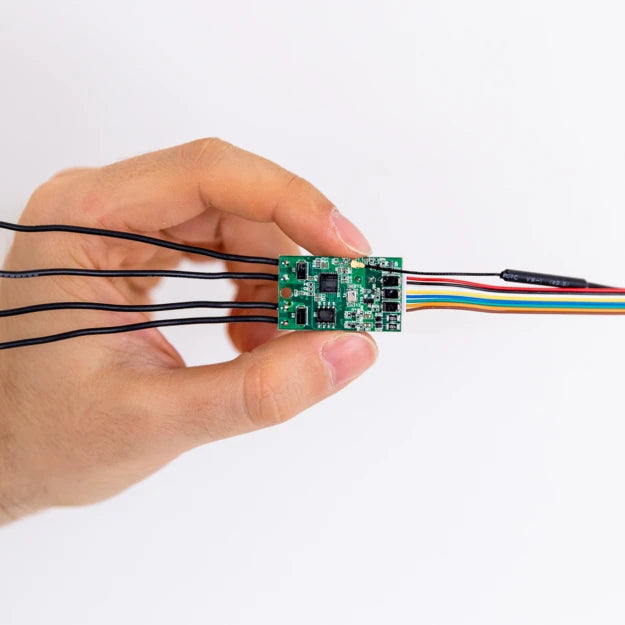

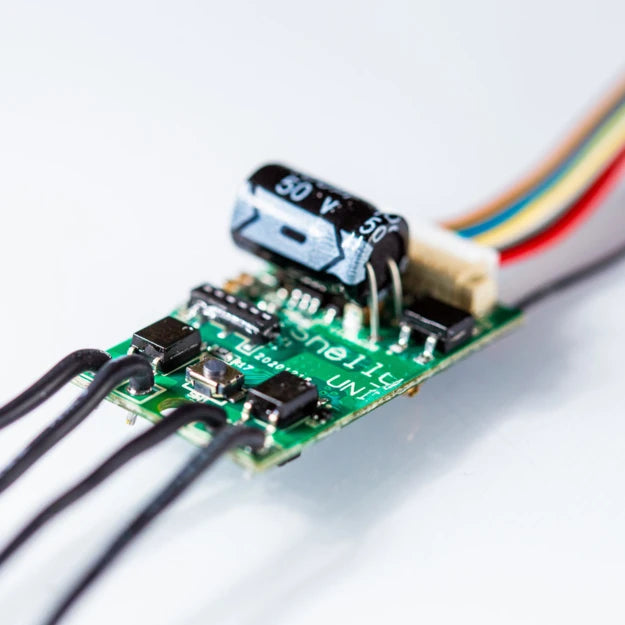

Smart Wi-Fi-operated module

With this tiny insulated chip, you can control sensors and measure data to trigger actions.

  • Suitable for low-voltage AC and DC applications (12V - 24V AC and 12V-36V DC)
  • Easy control through the Shelly app,  as well as various protocols, platforms, and voice assistants.
  • Has an embedded web server and connects to your Wi-Fi network

Specifications

POWER
Power supply AC 12V – 24V
Power supply DC 12V – 36V
SPECIAL FUNCTIONS
Inputs 2 Separated digital inputs from 2.2-36V DC and 12-24V AC
Outputs 2 Potential free outputs up to 24VAC and 36VDC, max 100 mA, 300mW each
Overload protection No
Power measurement 1 ADC – dual ranges from 0-12V and 0-30V
FEATURES
Channels 2 Channels
Operational temperature 0 to + 40 °C
Device power consumption < 1 W
Intelligent On/Off Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
CONNECTIVITY
Wireless/WiFi Protocol 802.11 b/g/n
Radiofrequency 2400 – 2500 MHz
Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
DIMENSIONS
Size 20mm x 33mm x 13mm
