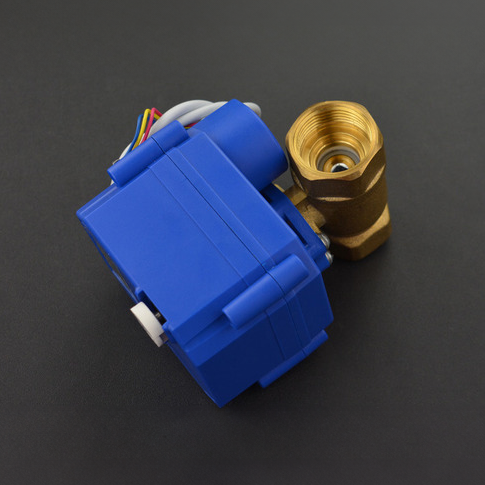

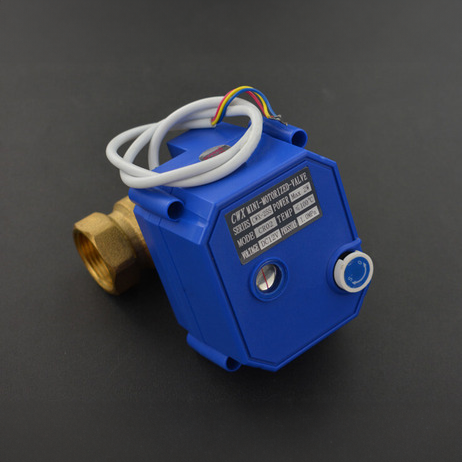

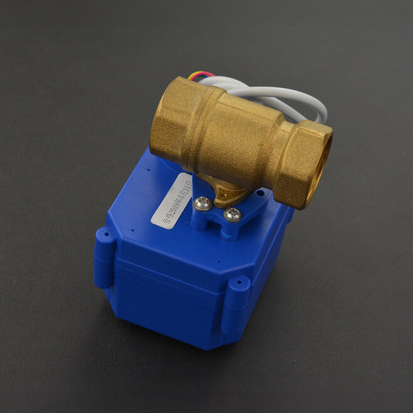

Use this 12V solenoid valve to control the flow of liquid! This is an automated and manual solenoid valve that comes with three colors control wires: red, yellow and blue. Connect the blue wire to positive pole to open the valve, or connect the red wire to positive pole to close the valve. The yellow wire is the shared ground line. If the valve is powered off, it will stop working and keep the current state. You can open or close the valve manually then.

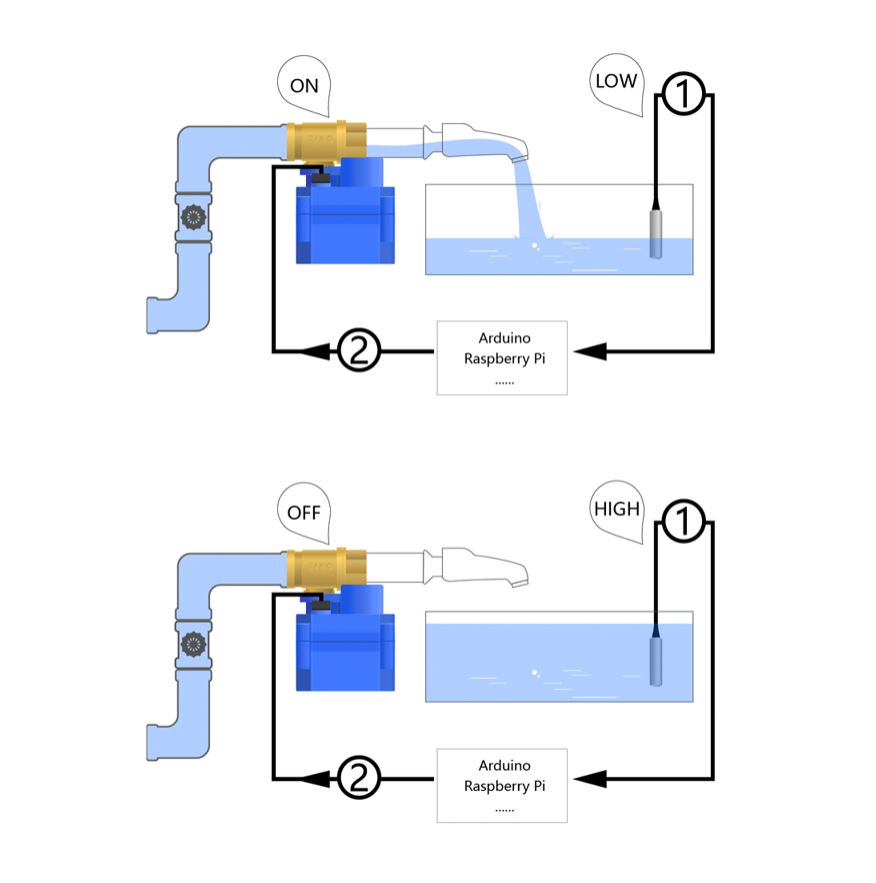

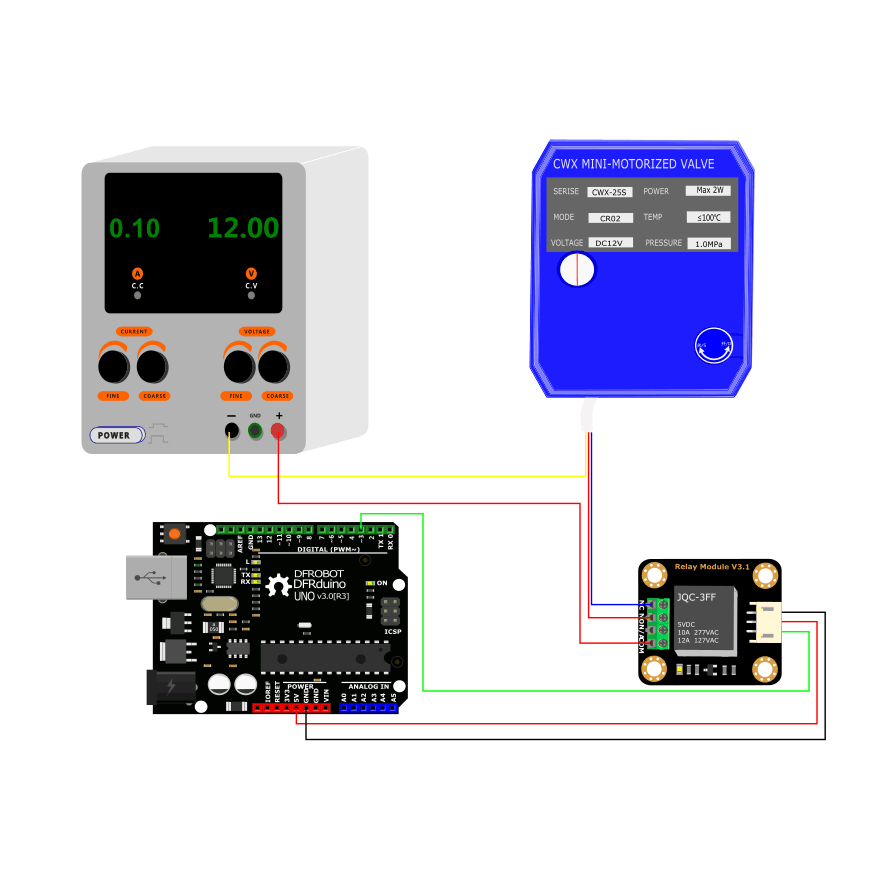

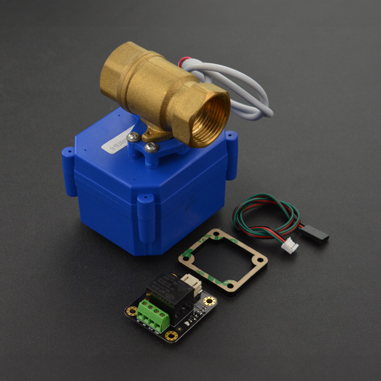

Use this product with our Gravity: Digital 5A Relay Module to easily control the valve, for instance, to open or close the valve in a particular amount of time. It can be widely used in smart home, automatic agriculture, fisheries and other projects that require the precise controlling of water flow.
- Operating Temperature: -10℃-50℃
- Rated Voltage: 12V DC
- Rated Current: 100mA
- Rated Power: 2W Max
- Valve Pressure: 1.0MPa
- Insulation Resistance: >20MΩ
- Torque: 30-60kg.cm
- Inner Pipe Dimension: 20mm/0.79”
