Description

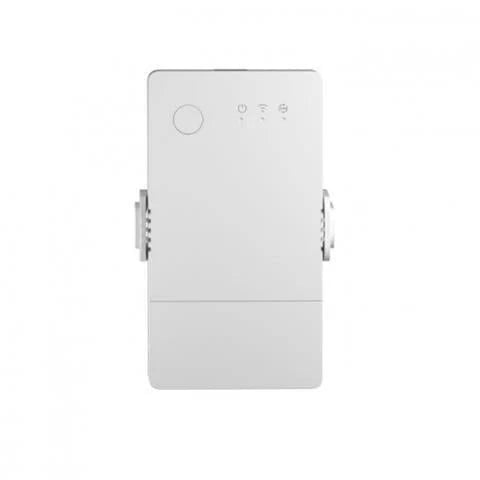

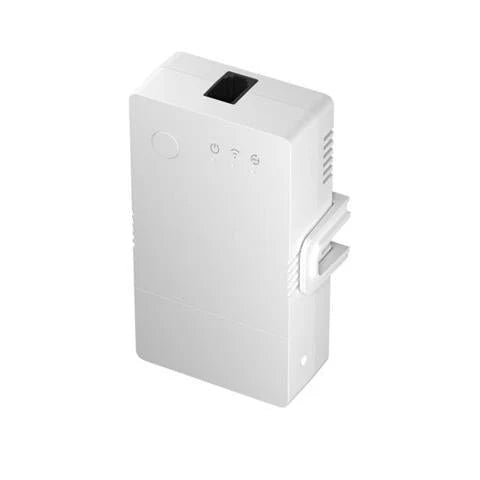

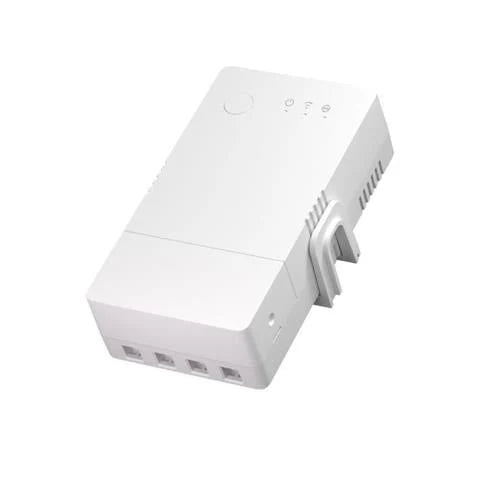

THR320-Temperature and Humidity Monitoring WiFi Smart Switch (100 – 240V 50/60HZ, 20A Max). Has an RJ9 Jack for Sensor Input. Temp and Humidity Sensors not included. Can be mounted on a DIN Rail
Features
- 20A Max Output - Support to connect 20A Max high load, compatible with more home appliances.
- 6-Month Temp & Humi Historical Data by Hours - Support to check the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.
- Local Automatic Control - Support LAN control, the device can turn on/off automatically according to the temp & humi thresholds at different time periods. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.
- Voice Control - Compatible with Alexa, Google Assistant. Just speak out your command, they can do on/off as you say, and check the temperature and humidity for you.
- Smart Scenes - TH Origin can trigger other smart devices when the temperature and humidity reach the threshold or the device switches on or off. The device on, off, and invert can also as execute action.
Specifications
| H Origin |
16A |
|---|---|
| Model |
THR320 |
| MCU |
ESP32 |
| THR320 Input/Output |
100-240V -50/60Hz 20A Max |
| Wi-Fi |
IEEE 802.11 b/g/n 2.4GHz |
| TH Origin Working Humidity |
5%-95%RH,non-condensing |
| TH Origin Working Temperature |
-10°C~40°C(14℉~104℉) |
| Certification |
TUV/CE/UKCA/WWA/FCC/RoHS/SRRC |
| Security Mode |
WPA/WPA2 |
| Supported Sensor |
THS01, DS18B20, MS01 |
| THS01 Working Temp |
–40℃~+85°C(-40℉~185℉) |
| THS01 Humi Measuring Range |
0~100%RH |
| DS18B20 WorkigTemp |
-55℃~+125℃(-67℉~257℉) |
| MS01 Humi Measuring Range |
0~100%RH |
| MS01 Operating Temp Range |
0℃~60°C(32℉~140℉) |
| RL560 Conductor Resistance |
Max.10Ω |
| RL560 Insulation Resistance |
Min.5MΩ |
| Works with |
Amazon Alexa, Google Assistant |
| Casing Material |
PC V0 |
| Color |
White |
| Product Size |
98x54x27.5mm |
