Description

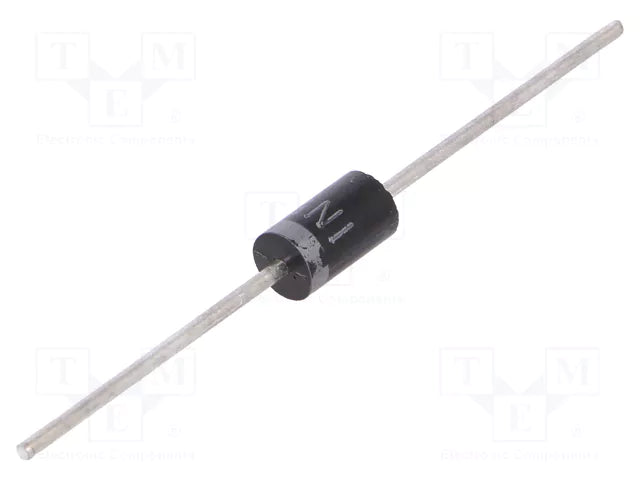

The TME 1N5408 Power Diode is a high-performance general-purpose rectifier diode designed for power supply circuits and high-current applications. With a reverse voltage rating of 1000V and a forward current capacity of 3A, it efficiently converts AC to DC while providing reliable protection against voltage spikes. Its rugged construction ensures long-lasting performance in demanding environments.
Specifications
- Type: Power Rectifier Diode
- Maximum Repetitive Reverse Voltage (Vrrm): 1000V
- Average Forward Current (If(AV)): 3A
- Peak Forward Surge Current (Ifsm): 200A
- Forward Voltage Drop (Vf): Approx. 1.0V @ 3A
- Package Type: DO-201AD (Axial Lead)
- Mounting Type: Through-hole
- Polarity: Cathode marked with band
- Operating Temperature Range: -65°C to +175°C
Find datasheet here.
