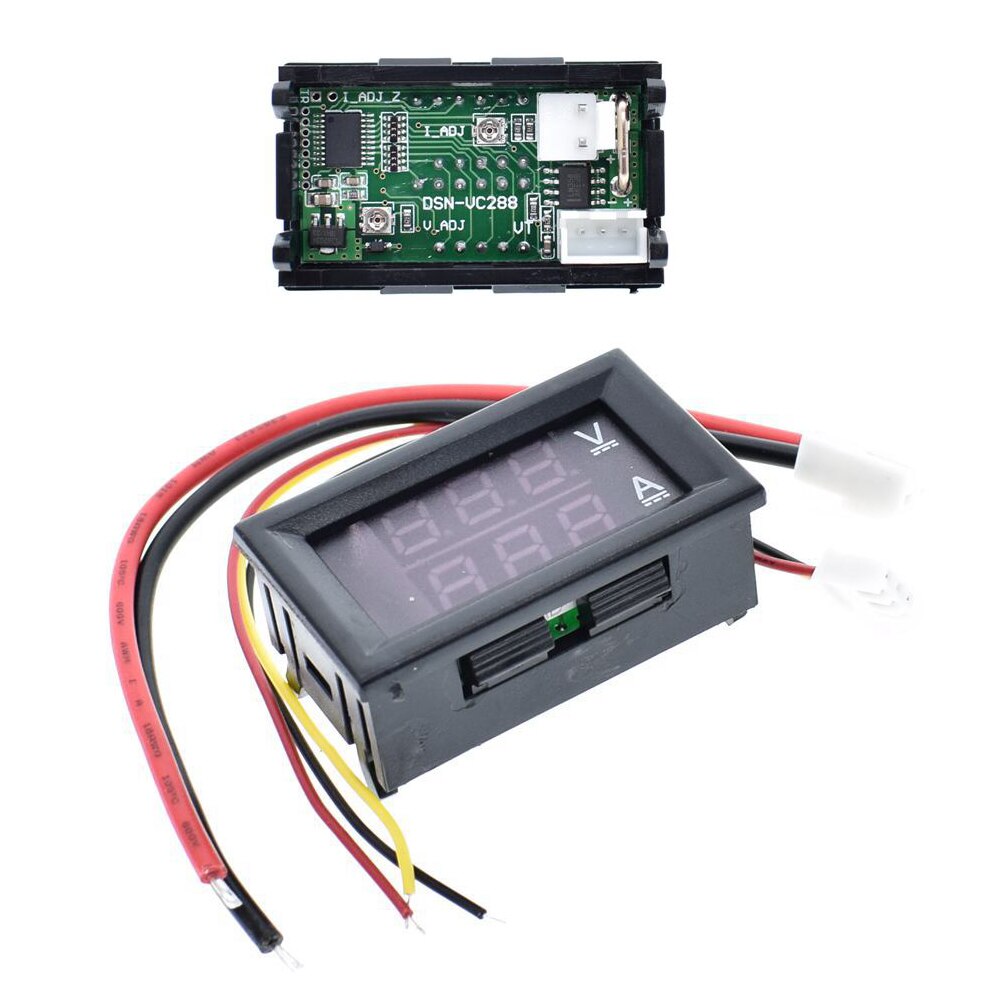

Description
Measure dc batter voltage and amps, great for solar, camping and diy projects.
Specifications
- Working voltage: 4.5-30V DC
- Note: The maximum input voltage should not exceed 30V, otherwise there is a danger of burning.
- Working current: ≤20mA
- Display: 0.28inch Red Blue LED Digital Tube Dislay
- Measuring range: DC 0-100V 0-50A (using shunt)
- Note: Meter cannot work without shunt, it does not have an internal shunt
- Voltage resolution (V): 0.1V
- Current resolution (A): 0.01A
- Measurement accuracy: 1% (±1 digit)
- Minimum resolution (A): 0.01A
- Working temperature: -10 ° C - + 65 ° C
- Working pressure: 80~106 kPa
- Size: 48 × 29 × 21mm
Packaging
- 1x Ammeter

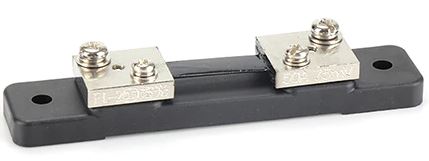

- 1x 50A Shunt
