Description

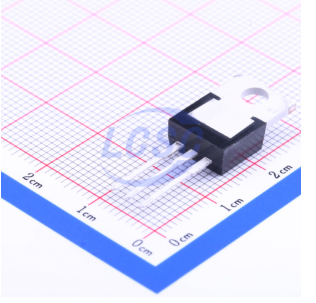

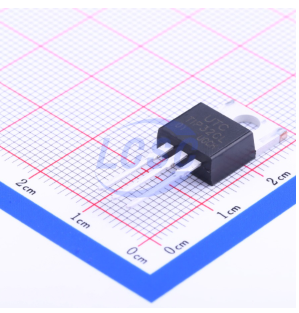

Bipolar Transistor - PNP - 2W 100V - UTC(Unisonic Tech) TIP32CL-TA3-T
Specifications
| Category | Triode/MOS Tube/Transistor/Bipolar Transistors - BJT |
| Datasheet | UTC(Unisonic Tech) TIP32CL-TA3-T |
| RoHS | |
| Collector Cut-Off Current (Icbo) | - |
| Collector-Emitter Breakdown Voltage (Vceo) | 100V |
| Power Dissipation (Pd) | 2W |
| Collector Current (Ic) | 3A |
| DC Current Gain (hFE@Ic,Vce) | 10@3A,4V |
| Transition Frequency (fT) | 3MHz |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) | 1.2V@3A,375mA |
| Transistor Type | PNP |
| Operating Temperature | +150℃@(Tj) |
