Description

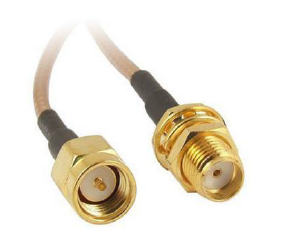

This RG316 Coaxial Cable 10cm Pigtail WLAN Network RF Antenna is used widely for router, booster, and WLAN Wi-Fi Antenna conversion. The antenna adapter can connect your phone to the antenna to provide better reception in no signal areas. High-frequency low-loss antenna extension cord. RG316 military standard Teflon silver plated wire feeder with acid corrosion resistant high temperature and other characteristics.
Specifications
|
Cable length |
10cm |
|
Impedance |
50 Ohm |
|
Application |
RF |
|
Type |
SMA |
|
Gender |
Male to Female |
|
Frequency Range |
DC-6GHz |
|
VSWR |
1.5 Max |
|
Insertion Loss |
1.8db |
|
Insulation Resistance |
≧5000MΩ |
|
Power Handing |
2W |
|
Working Temperature |
-40°C to +85°C |
|
Shipment Weight |
0.04 kg |
|
Shipment Dimensions |
5 × 4 × 1 cm |
Features
- High-Quality SMA Connectors On Both Ends
- High efficiency
- Uses RG316 Coaxial Cable
