Description

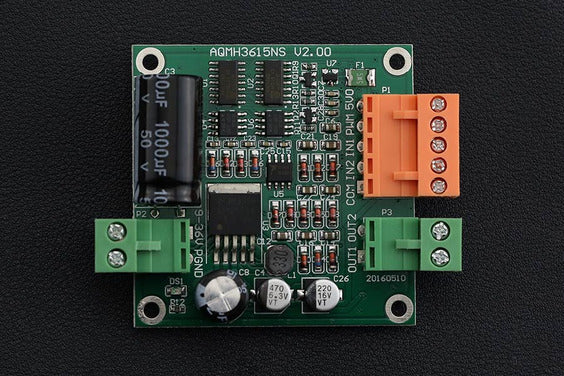

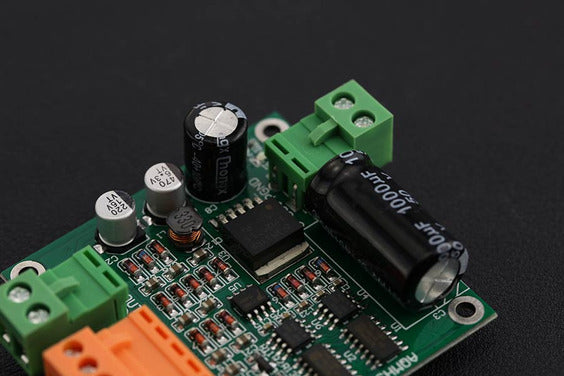

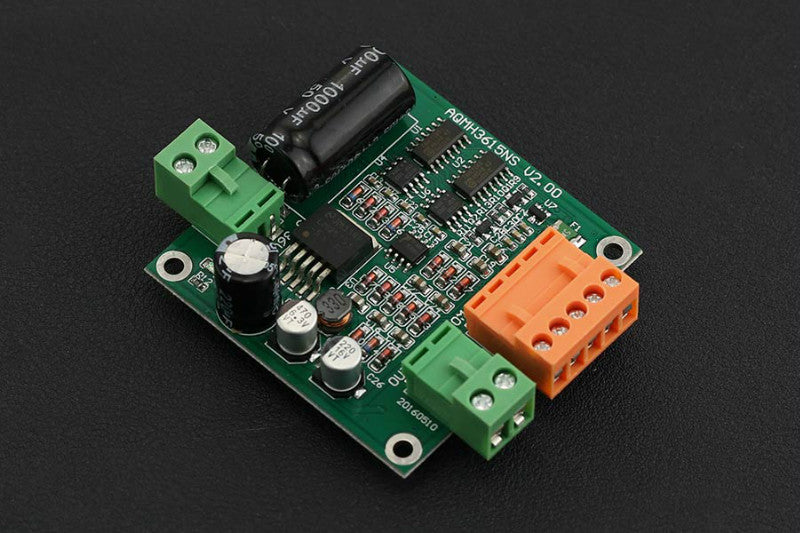

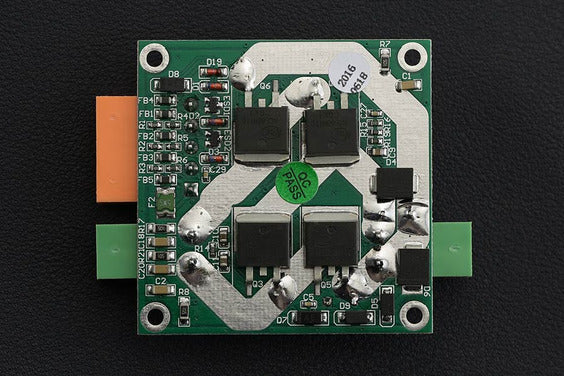

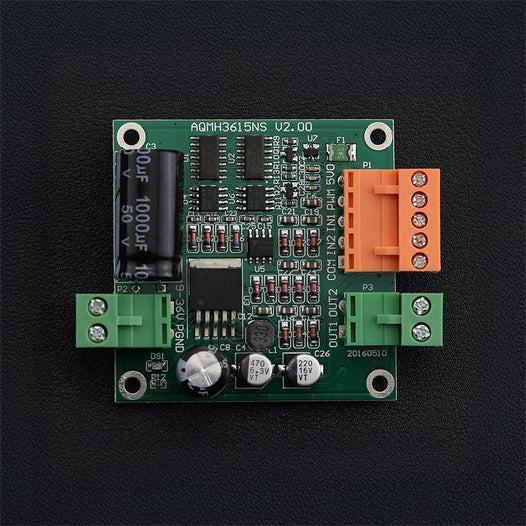

This a small DC Motor driver using the LM2575 IC to provide 15A at 36Vdc. It also provide an under voltage latch out (UVLO) to protect your system. It also has a 5V output which can be used to power any 5V device such as an Arduino.
Specifications
- Voltage supply: DC 12 ~ 36 V
- Voltage supply limit: 6.5 ~ 40 V
- Control signal Level (Compatible 3.3V/5V)
- High: DC 2.0 ~ 5.5 V
- Low: DC0 ~ 0.8 V
- Maximum continuous operating current:
- 12A (no heat sink)
- 15A (with simple heat sink)
- 20A (with Thick Heat Sink/ Cooling System)
- Peak current: 110 A
- Speed control: PWM
- Minimum valid Pulse Width: 200 ns
- Maximum Output Current @5V: 500 mA
- Working Temperature: -25 ~ 85 °C
- Mounting Hole: M3
- Dimension (Length * Width * Height): 55 * 55 * 20 (mm)/ 2.165 * 2.165 * 0.787 (in)
- Weight: 42g
