Description

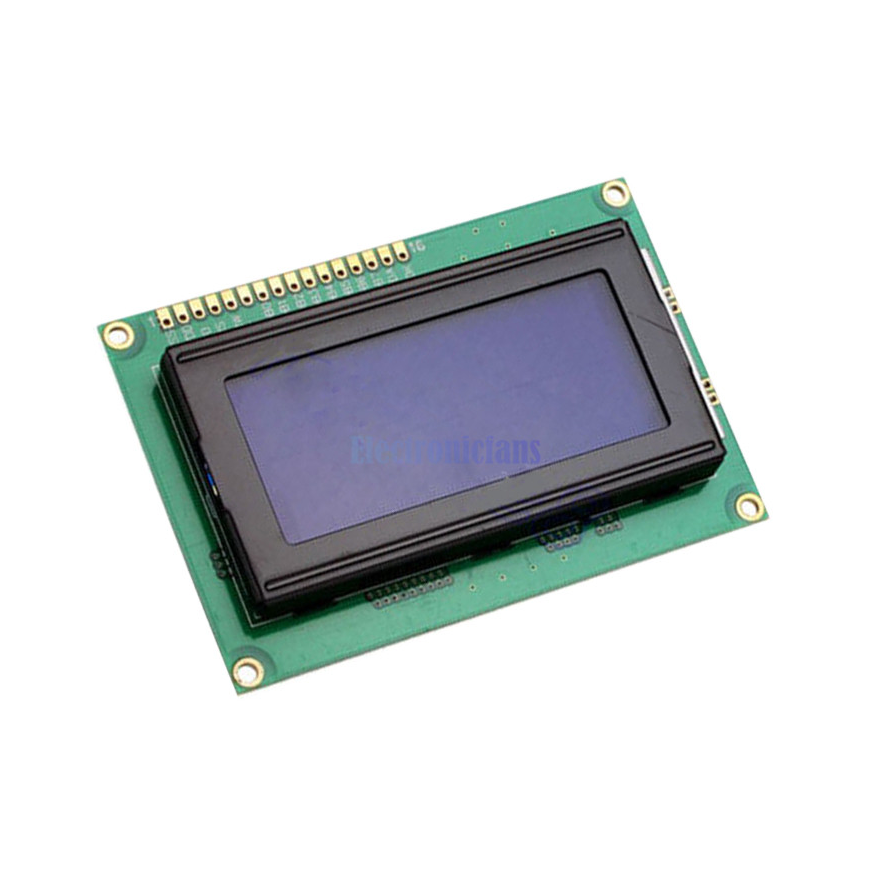

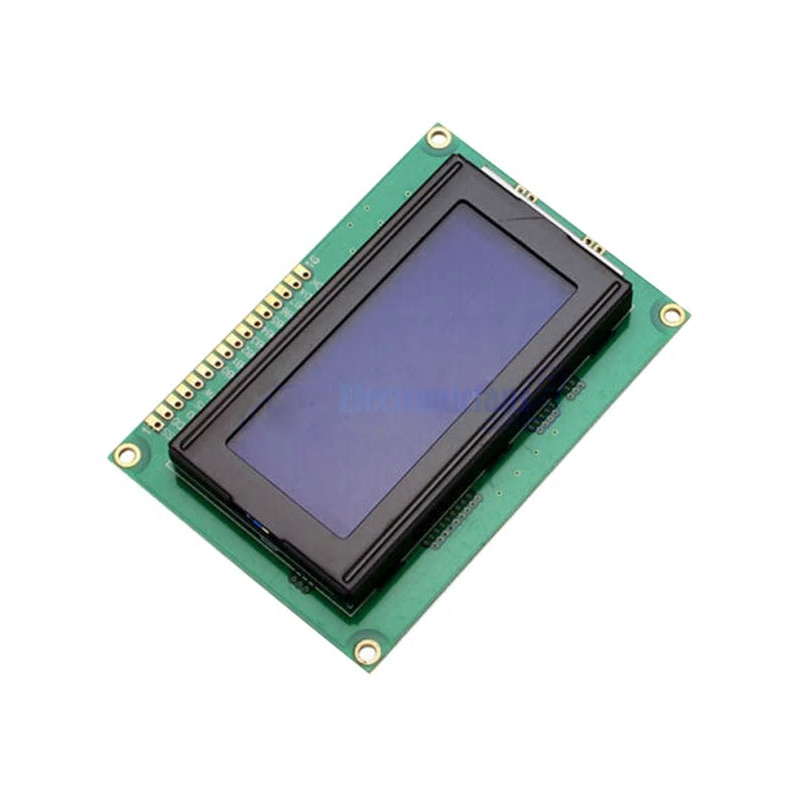

LCD 16x4 Character LCD Screen Blue Blacklight for Arduino
Specifications
- Gross Weight (kg) 0.0700
- Part Number(Order Number) 1604 LCD
- Connection Pin Header
- Display Format 16x4 Character
- Sunlight Readable No
- Touch Panel Optional No
- Outline Dimension 87.0(W)x60.0(H)x12.5(T)mm
- Visual Area 61.70x25.20mm
- Active Area 56.20x20.80mm
- Character Size 2.95x4.75mm
- Diagonal Size No
- Dot (Pixel) Size 0.55x0.55mm
- Dot Pitch 0.60x0.60mm
- IC Package COB
- IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066
- Interface 6800 4-bit Parallel , 6800 8-bit Parallel
- Display Type STN-LCD Blue
- Response Time(Typ) No
- Contrast Ratio(Typ) No
- Colors No
- Viewing Direction 6:00
- Viewing Angle Range No
- Appearance White on Blue
- Brightness(Typ) No
- Backlight Color blue Color
- Backlight Current (Typ) 45mA
- Power Supply(Typ) 5.0V
- Supply Current for LCM(Max) 1800uA
- Operating Temp -20℃~70℃
- Storage Temperature -30℃~80℃
Package included
1 x LCD1604 16x4 Character LCD Display Module LCM Blue Blacklight 5V for Arduino
