Description

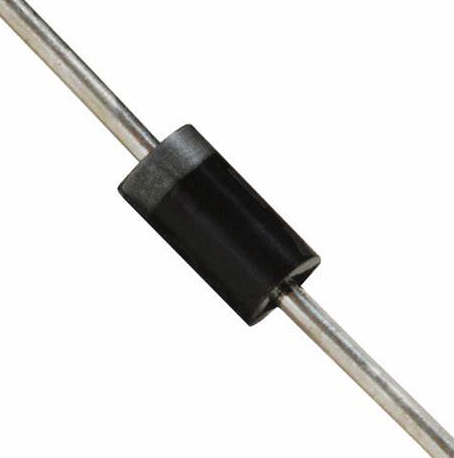

1N4001 DO-41 1A 50V Rectifie Diodes
Benefits
- Diffused Junction
- High Current Capability and Low Forward Voltage Drop
- Surge Overload Rating to 30A Peak
- Low Reverse Leakage Current
- Lead Free Finish, RoHS Compliant
Specifications
- Mounting Type: Through Hole
- Package Type: DO-41
- Maximum Continuous Forward Current: 1A
- Peak Reverse Repetitive Voltage: 50V
- Diode Configuration: Single
- Rectifier Type: Switching
- Diode Type: Silicon Junction
- Pin Count: 2
- Maximum Forward Voltage Drop: 1V
- Number of Elements per Chip: 1
- Diode Technology: Silicon Junction
- Diameter: 2.7mm
- Peak Non-Repetitive Forward Surge Current: 30A
