Description

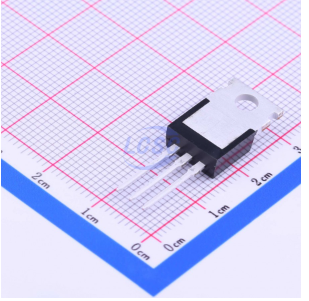

N Channel Transistor Microelectronics CS150N03A8/30V 150A 100W 3.5mΩ@10V,50A 3V@250uA N Channel TO-220(TO-220-3) MOSFETs ROHS
Specifications
| Attribute | Value |
|---|---|
| Category | Triode/MOS Tube/Transistor/MOSFETs |
| Datasheet | Wuxi China Resources Huajing Microelectronics CS150N03A8 |
| RoHS | |
| Drain Source Voltage (Vdss) | 30V |
| Continuous Drain Current (Id) | 150A |
| Power Dissipation (Pd) | 100W |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 3.5mΩ@10V,50A |
| Gate Threshold Voltage (Vgs(th)@Id) | 3V@250uA |
| Type | N Channel |
